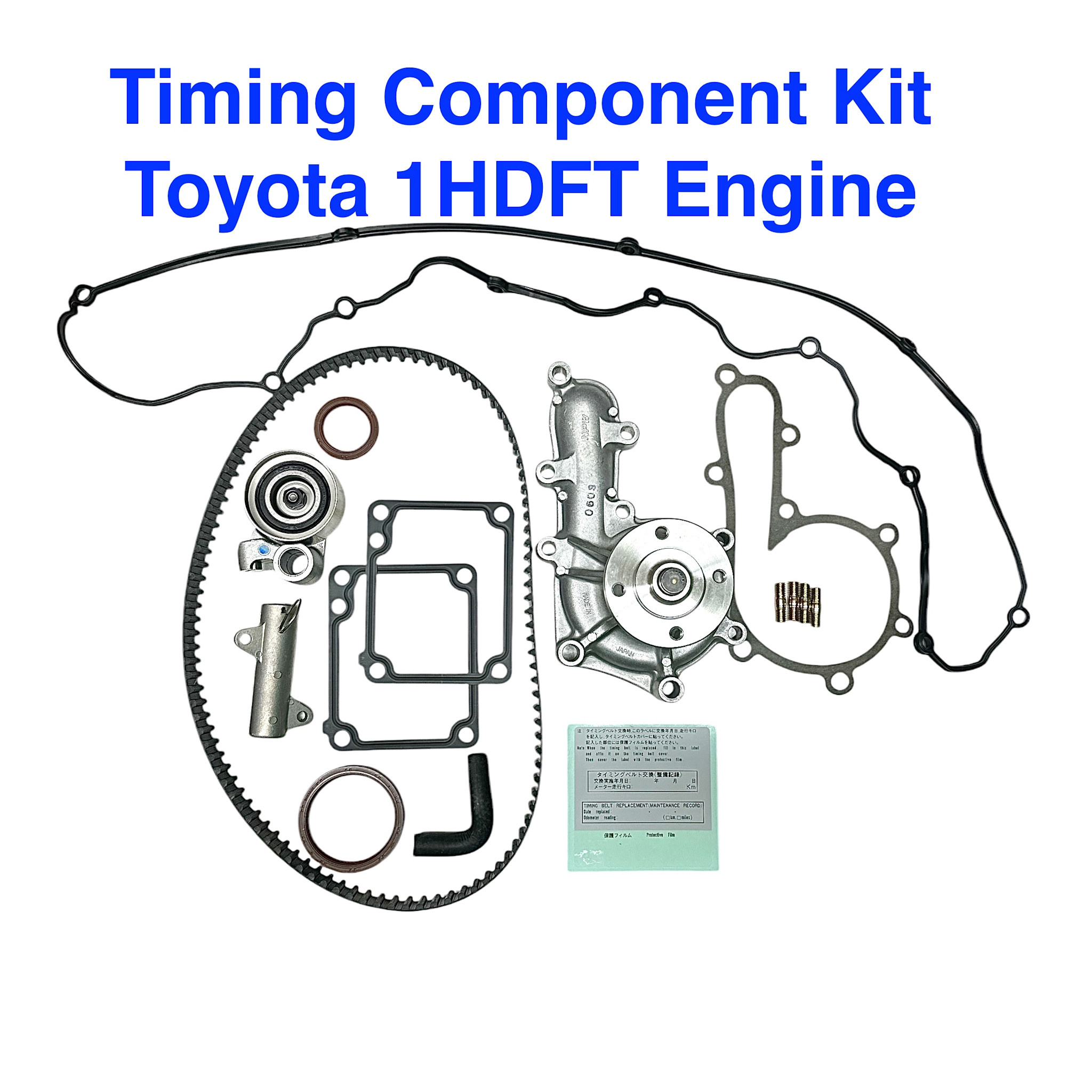

Timing Component Kit (11 Pcs) - Toyota 1HDFT 105T Belt + WP + VCG

11 Pc. Timing Belt Kit for the Toyota 1HDFT Engines with water pump & valve cover gasket

Suits: Toyota Land Cruiser HDJ80, HDJ81 & other models using the later 105 tooth belt with the 1HDFT engine

Does not suit: models using the 1HD-FTE engine as some of the parts are different.

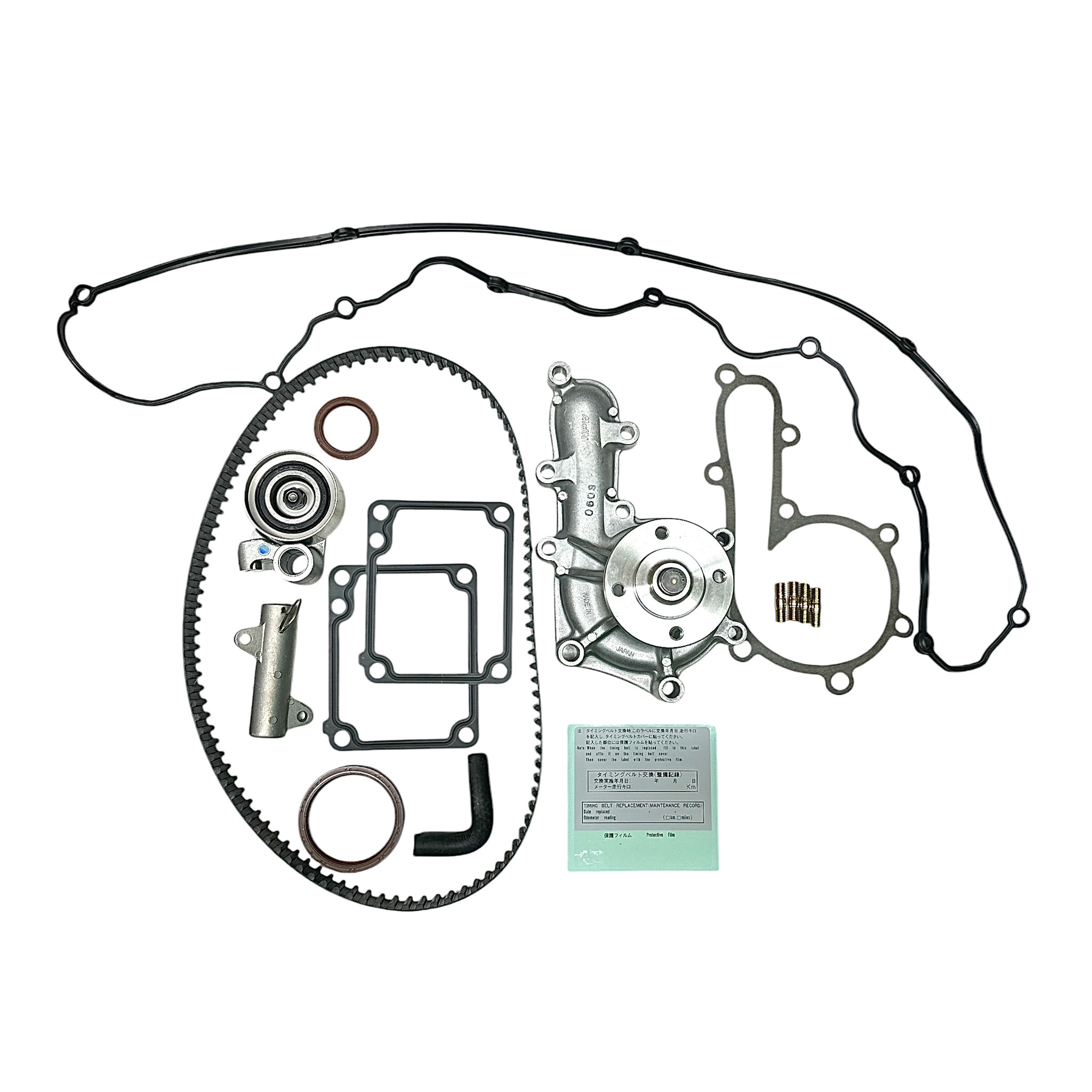

Kit contents:

• 1x 13568-19175  Timing belt 105Tx25mm
• 1x 13505-17020  Tensioner pulley
• 1x 13540-17011  Hydraulic Tensioner (was 13540-17010)
• 1x 16100-19235  Water Pump (w/gasket & studs)
• 1x 11213-17020  Valve Cover Gasket
• 1x 90311-32020  Camshaft seal (was 90311-32017)
• 1x 90311-58006  Injection pump drive gear seal
• 2x 19829-17010  Intake Crossover Gasket
• 1x 16284-17010  Turbo Water Hose No. 1 for 1HDFT
• 1x 13564-10010  Belt change reminder label

Pro Tips:

When replacing your timing belt we always recommend that you also replace your tensioner pulley and hydraulic tension device - these parts are included in the kit.

The cam seal and injection pump gear seal are also worth doing, and come in the kit.

When replacing the timing components, it is also worth replacing the water pump at the same time. The water pump lifespan is only somewhat longer than the timing components, and the timing components need to be removed to replace the water pump, making this a worthwhile combination job.

Other parts you may want to consider:
- Thermostat with gasket 90916-03089
- Radiator Hoses for HDJ80 / HDJ81 / HZJ80 Upper Hose HDJ81 Lower Hose HDJ81

You will need two 4L jugs of concentrated coolant and distilled or reverse osmosis water to dilute your coolant.

A new rad cap is good idea too - 16401-71010 (16401-54750)

All Components from Japan, most are from Toyota or Toyota's OEMs.
