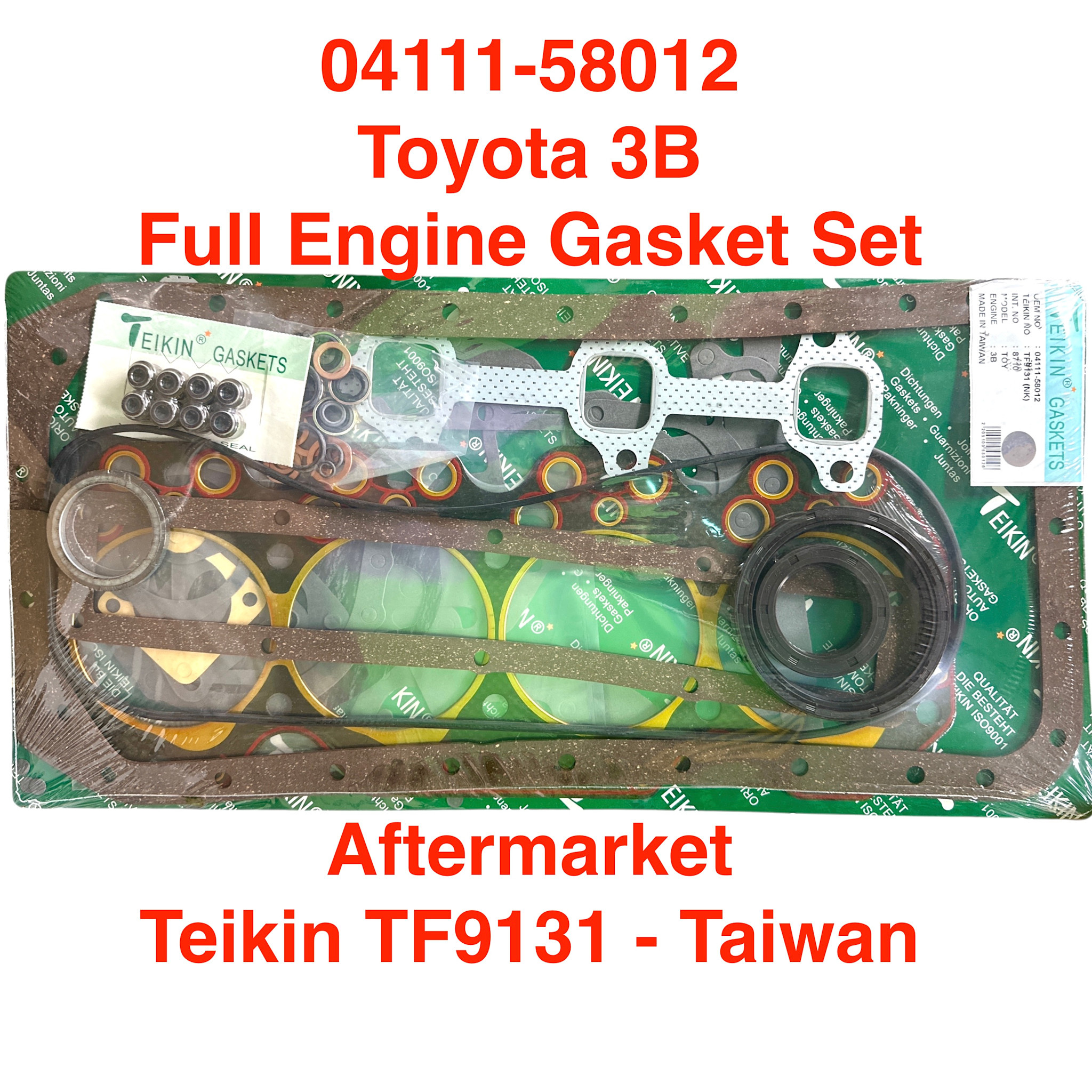

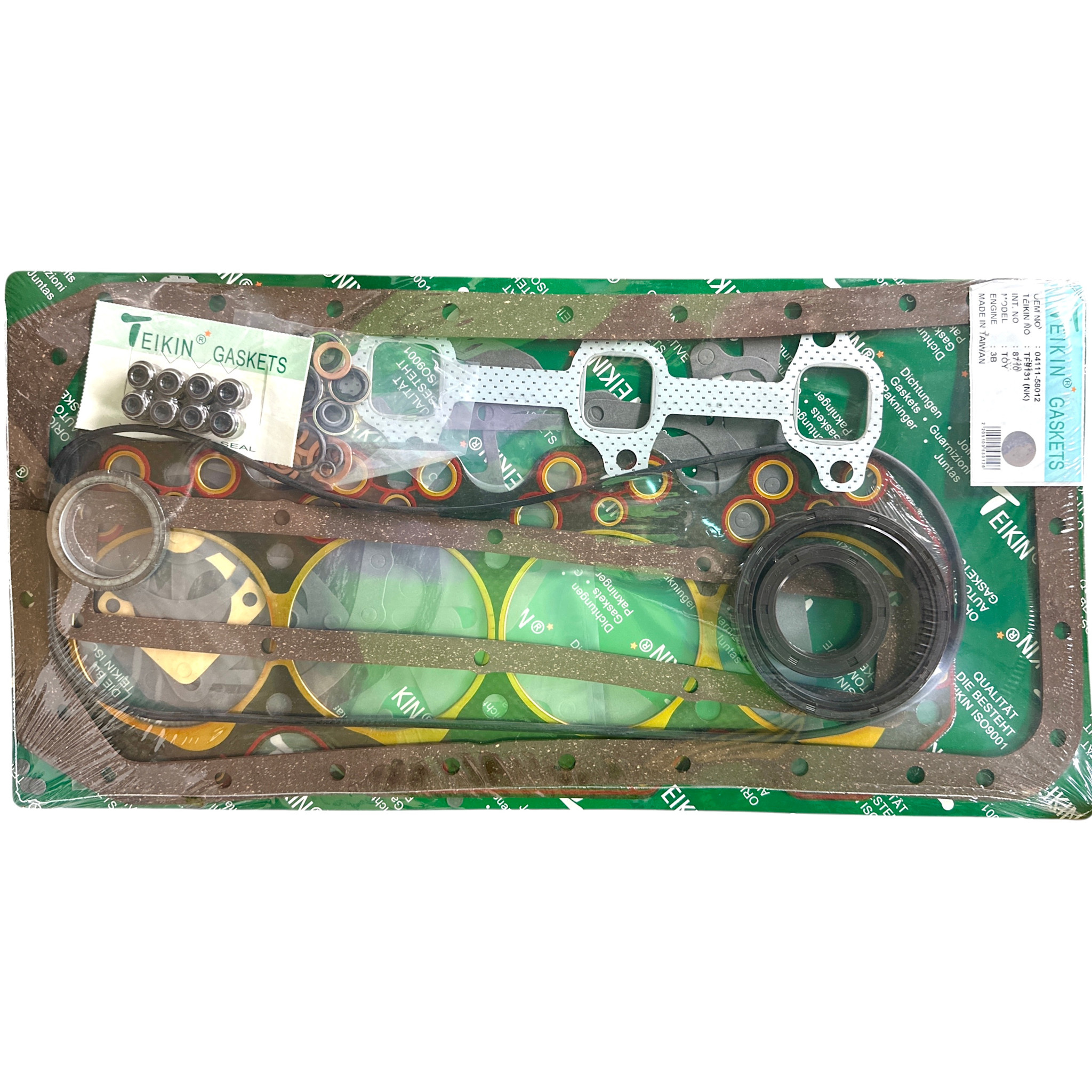

Gasket Set, Full Engine - Toyota 3B (w/head gasket) - Teikin 04111-58012 AM

3B Full Engine Gasket Kit up to 07/1988

This is an inexpensive yet decent quality full engine gasket set for earlier vintage 3B engines with cylinder liners.

The head gasket in this kit is slightly thinner than some other brands and the installer needs to ensure the cylinder liner protrusion is low enough, and even across the block, that once the cylinder head is bolted down that the head gasket has adequate clamping force from the cylinder head to properly seal.

If you are looking for a better quality kit, then order the Diesel Power Parts version.

Kit Contents:
Head Gasket (composite)
Valve Guide Seals (8 pcs)
Valve Cover gasket & grommets
Timing Cover gaskets
Oil Cooler / Filter Housing gaskets
Front & Rear Main seals
Intake & Exhaust manifold gaskets - metal composite
Exhaust donut
Thermostat & Water Neck gaskets
Breather Cover gasket (cork)
Oil Pan gasket (synthetic cork)
Copper Washers & O-Rings

Does NOT come with injector seals/washers

Other recommended items, not included:
- Pre-combustion chambers
- Injector Seal Washer set
- Injection Pump O-Ring (pump to timing cover housing) (90301-77001)
- Thermostat (90916-03103)
- Freeze plug set

Upgrade items you might be looking for:
MLS head gasket
MLS Exhaust gasket

Should be re-torqued once only to 87 ft-lbs  after run-up and full cool-down is allowed for.

Toyota pn:
04111-58017
04111-58011
04111-58012

Aftermarket
Teikin - Taiwan

2022 05 09
