Article number: | RC-TK1KZ 9 Pc Kit |
Availability: | In stock (2) |
This page contains important product information - scroll to read
Toyota 1KZT & 1KZTE engines as found in Land Cruiser Prado KZJ70, KZJ78, Hilux Surf, HiAce & others

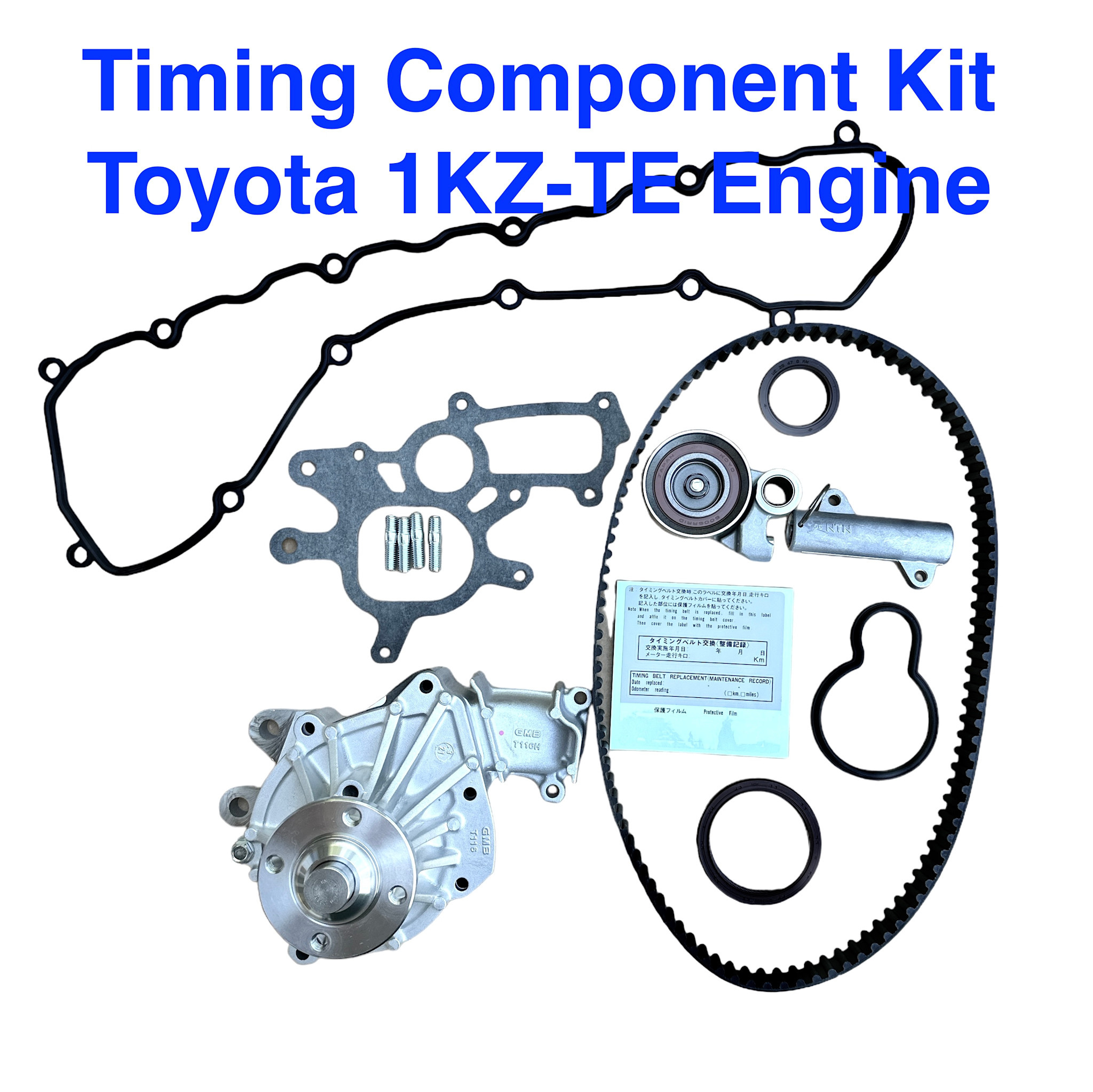

Kit Contents (9 pcs):
1x 13568-69085 Timing Belt (102Tx25mm round tooth)
1x 13505-67040 / 13505-67050 Belt Tensioner Pulley
1x 13540-67020 Hydraulic Tensioner
1x 90311-32020 / 90311-32017 / 90311-32019 Cam Seal (32x46x6mm)
1x 90311-58006 Seal #1 Injection pump drive (58x72x9mm)
1x 17116-67010 Gasket, Intake Crossover Pipe (not applicable to all models)
1x 11213-67010 Valve Cover Gasket
1x 16100-69355 Water Pump with lower housing
1x 13564-10010 Timing Belt Change Sticker
Parts are all Genuine Toyota/OEM, or high quality Japanese made
A Cautionary Note:
All diesel engines are interference engines - this means that if the timing belt or the timing tensioner pulley bearing fails, then the pistons will contact the valves potentially causing severe (read: very expensive) engine damage.
Proper repair procedures require that all of the timing components and the water pump are replaced at the Toyota recommended replacement interval of 100,000kms or 5 years, whichever comes first, or what is listed in your Factory Service Manual if it differs from this recommendation.
It is further recommended that other parts are inspected and replaced as necessary, including belts, radiator and heater hoses, thermostat and gasket, along with engine coolant at the proper concentration.
Service Recommendations:
There are a number of other items you may want to consider replacing when you do your timing belt service. The specific part numbers will change depending on your specific model's requirements, and if you can't find the parts you're looking for then send a request with your Frame Number and Model Codes from the firewall data tag (or at least the VIN/Frame Number and a description of what you have).
• Thermostat & Gasket (the thermostat opening temperatures are often much lower in HiAce vans)
• Upper & Lower Radiator Hoses
• Radiator cap (KZ engines can have two different types - check your part numbers against your VIN)
• Turbo Water Supply Hoses (these are small diameter hoses)
• AC Belt
• Alternator & Fan Belt
• Engine Coolant - not available on this eCom site, you can get this from Toyota or an Auto Parts Store
• Engine Oil
• Oil Filter
• Diesel Fuel Filter
• Brake Cleaner Solvent, Purple Degreaser or a similar product to clean the area of the engine you're working in (do not use flammable brake cleaner near a running diesel engine!!)
===//===//===
