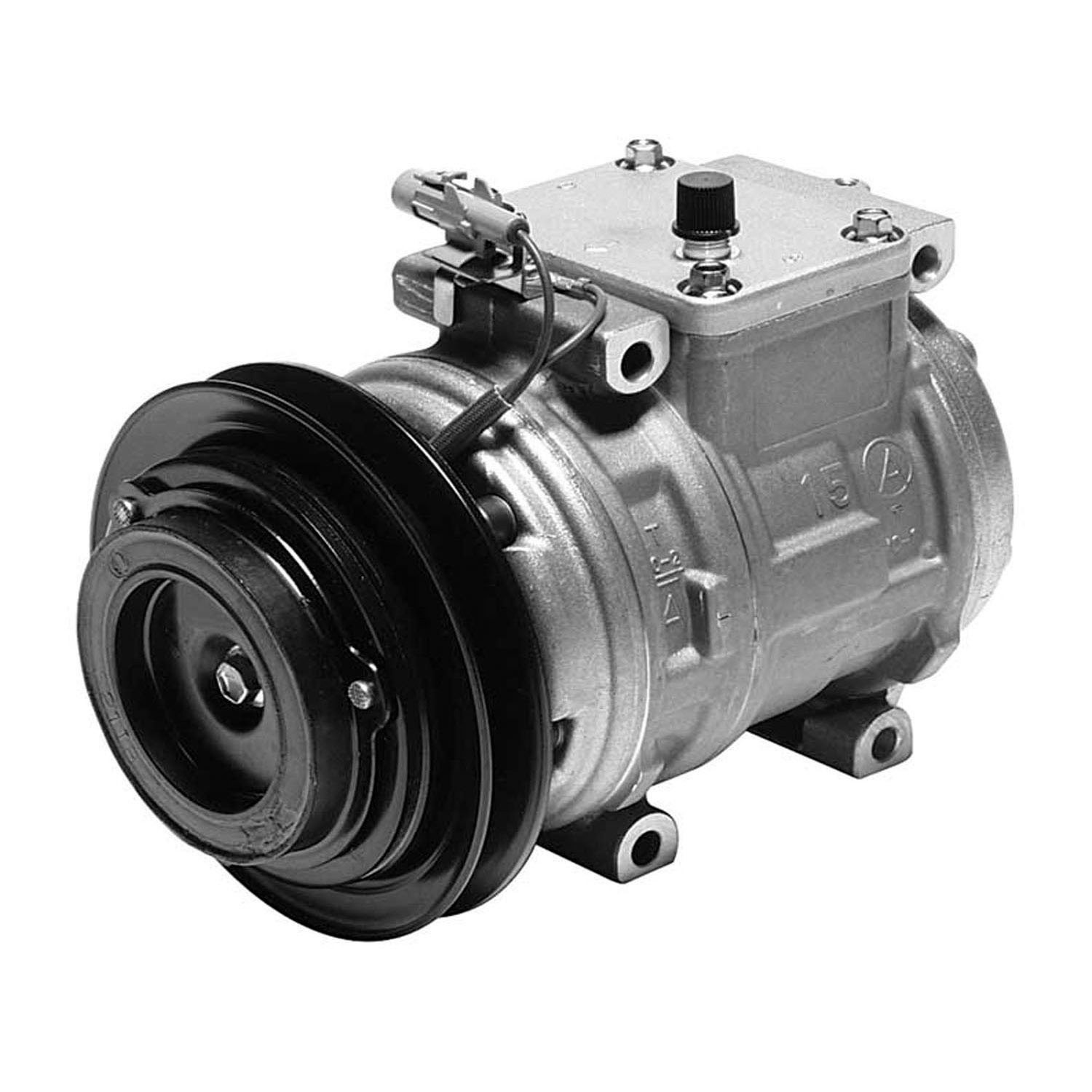

AC Compressor 1HZ, 1HDT - Denso 10PA15C - Toyota Land Cruiser HDJ80, HDJ81, HZJ80, HZJ81 w/pulley & clutch (12V)

New Genuine Denso A/C Compressor - Toyota Land Cruiser HDJ80, HDJ81, HZJ80, HZJ81 with 1HZ and 1HDT engines w/pulley & clutch (12V)

This is a non-stocked item, if you need a 10PA15 R12 compressor for your Land Cruiser, please contact us to order (2024 Aug).

This compressor is lubricated with Mineral Oil and is designed for use with R12 systems only or systems that are using R12a non-Freon replacement refrigerant (such as Red-Tek or Duracool) and are still using Mineral oil as the lubricant.

This compressor cannot be used on R134a systems unless it has been flushed and the appropriate amount of PAG oil (or Ester) has been added: it is far easier to order the correct compressor for use with R134a.

This is a 15 series compressor, there is a larger capacity 17 series compressor available if you would like to use that instead; the 17 series unit is appropriate for vehicles with rear-mounted AC systems. See: 88320-60340 (R12) 10PA17C

If you need an R134a compatible compressor your 1HZ or 1HDT powered Land Cruiser, then use part number: 88320-60560 R134a 10PA15C

This is a new part, not rebuilt.

Comes with 12V clutch and top cover gasket.

Part Number:
88320-60340 = early HZJ and HDJ81 (R12 systems)
88320-60560 = later HDJ81 (R134a systems)
88310-35270
88320-12520
88320-35270
88320-35280

Denso 147100-5932

Denso - Japan

8415.20
2022 08 25
8832060340
8832060560
8831035270
8832012520
8832035270
8832035280
