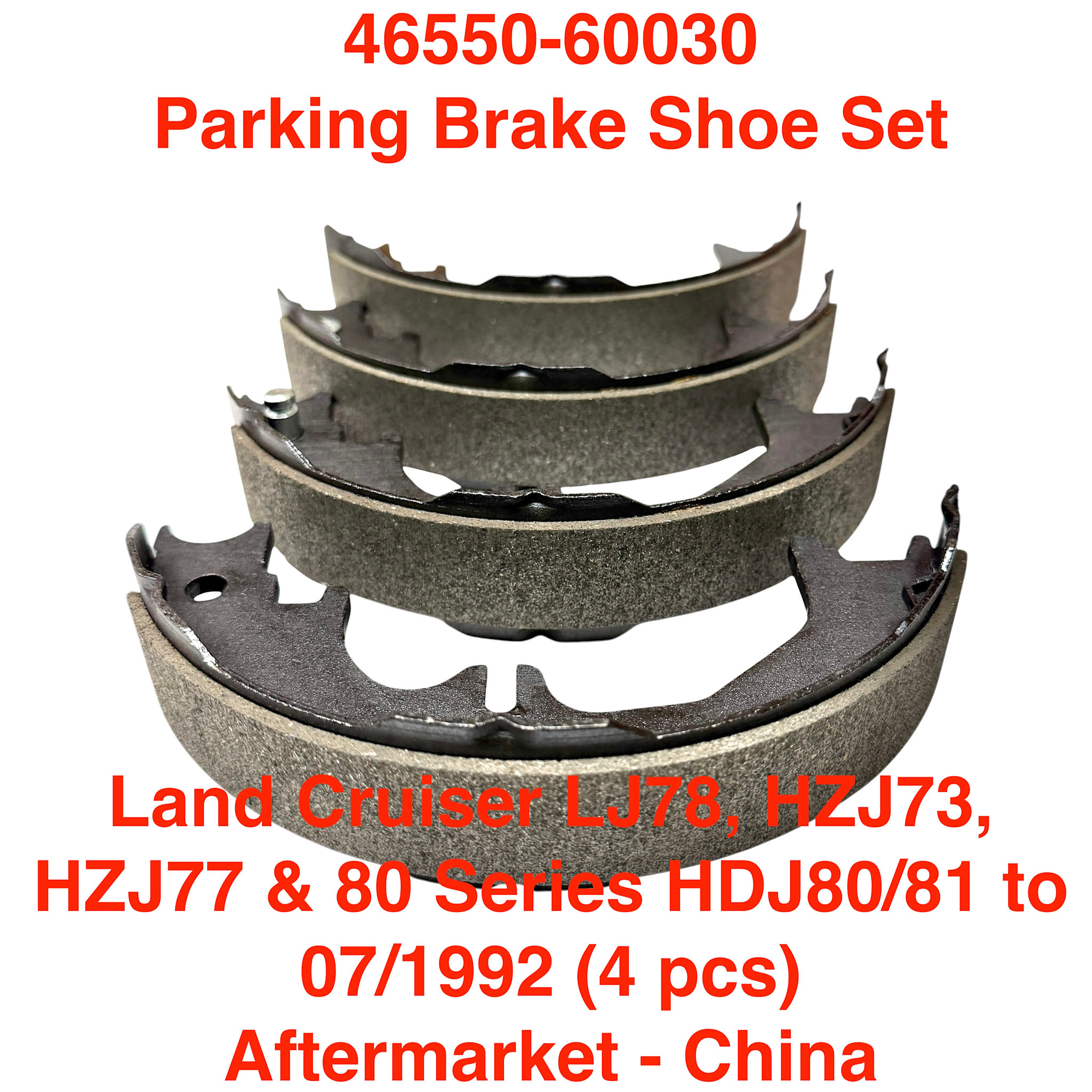

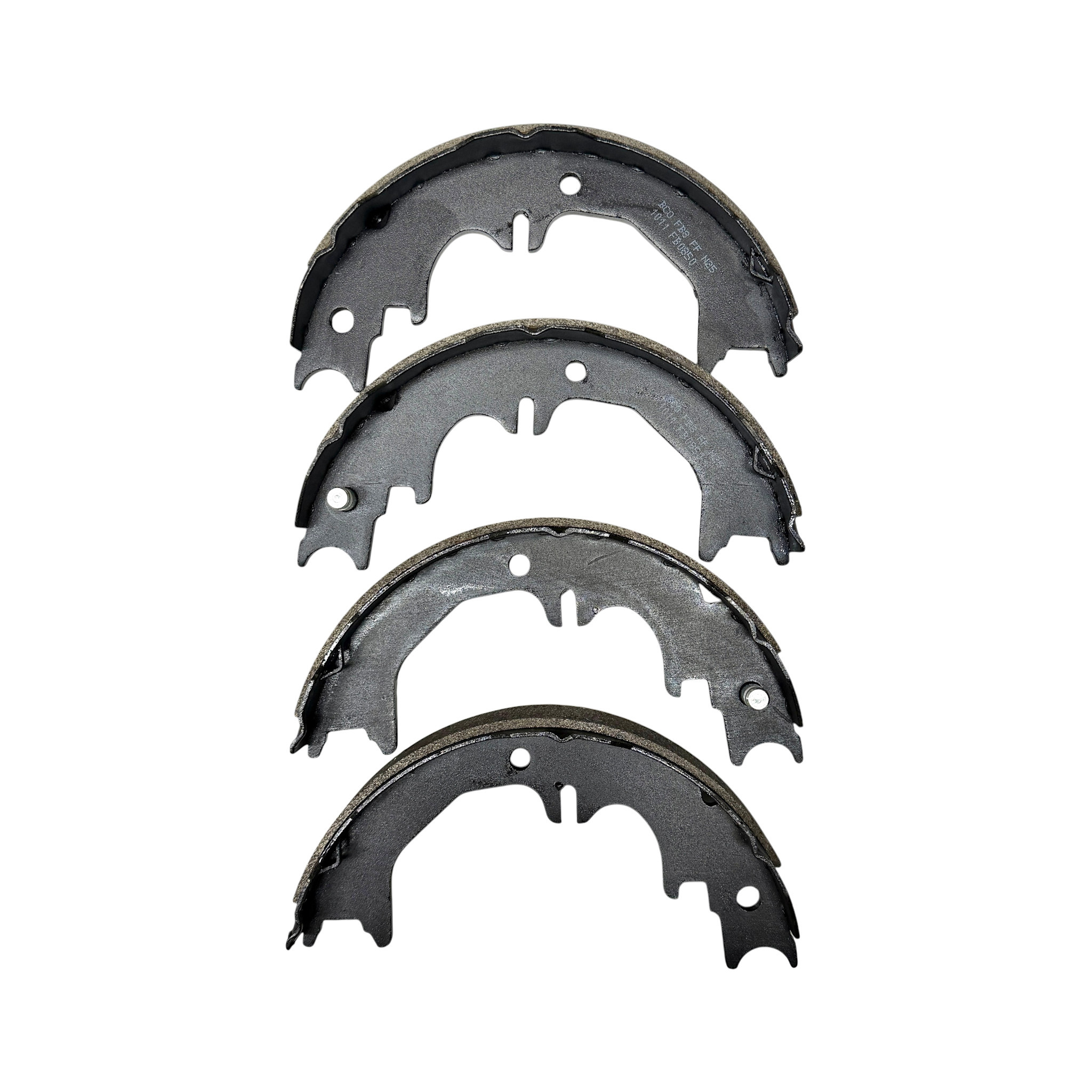

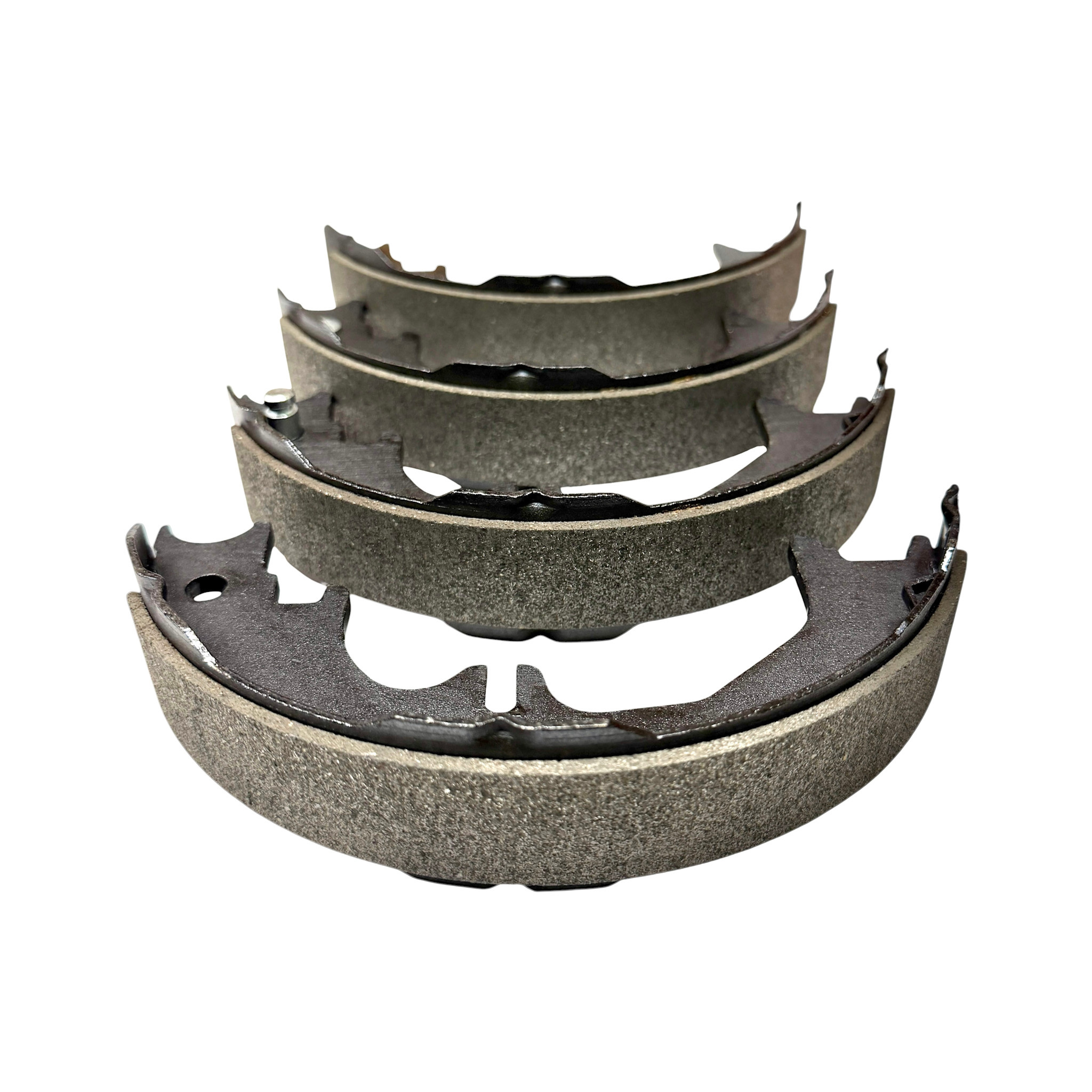

Parking Brake Shoes, Set - Land Cruiser LJ70, HZJ73, HZJ77, LJ78, & 80 Series HDJ81 w/early disc brakes - to 07/1992 (4 pcs) - 46550-60030-1

Parking Brake Shoes Set - Land Cruiser 80 Series HDJ81 w/early disc brakes - up to 07/1992 (4 pcs), and Land Cruiser 70 series with rear disc brakes - HZJ73, HZJ77, LJ71, LJ78, KZJ71, KZJ78 and so on ("small brakes")

• Early HDJ81 Series JDMs and other imported 80 series with the smaller rear disc brakes only
70 Series with rear disc brakes - such as the LJ71, LJ78, KZJ78 (& related), HZJ73, HZJ77 plus others.

• These are the parking brake shoes for the smaller rear disc brakes that were found on Land Cruiser 80 series imported from overseas (from 1990 to 07/1992).

• These brake shoes do not fit North American market vehicles with full-sized rear drum brakes
See: 04495-60070

The later 80 series and LX450 use a larger brake shoe in the rear disc brake drum.
See: RC-LC80 Big Park Brake Shoe Set OEM

Note: when working on brakes, the dust is a hazard to respiratory health even though it is asbestos free. Wear an appropriate respirator and use a wet method when cleaning the brake shoes, drums and related parts.

Contains Part Numbers:
46550-60030 LH/RH Rear shoe (2 pcs)
46580-60020 LH Front shoe (1 pc)
46540-60020 RH Front shoe (1 pc)

High Quality Aftermarket Parts

8708.30
2022 08 30
4655060030
4658060020
4654060020
