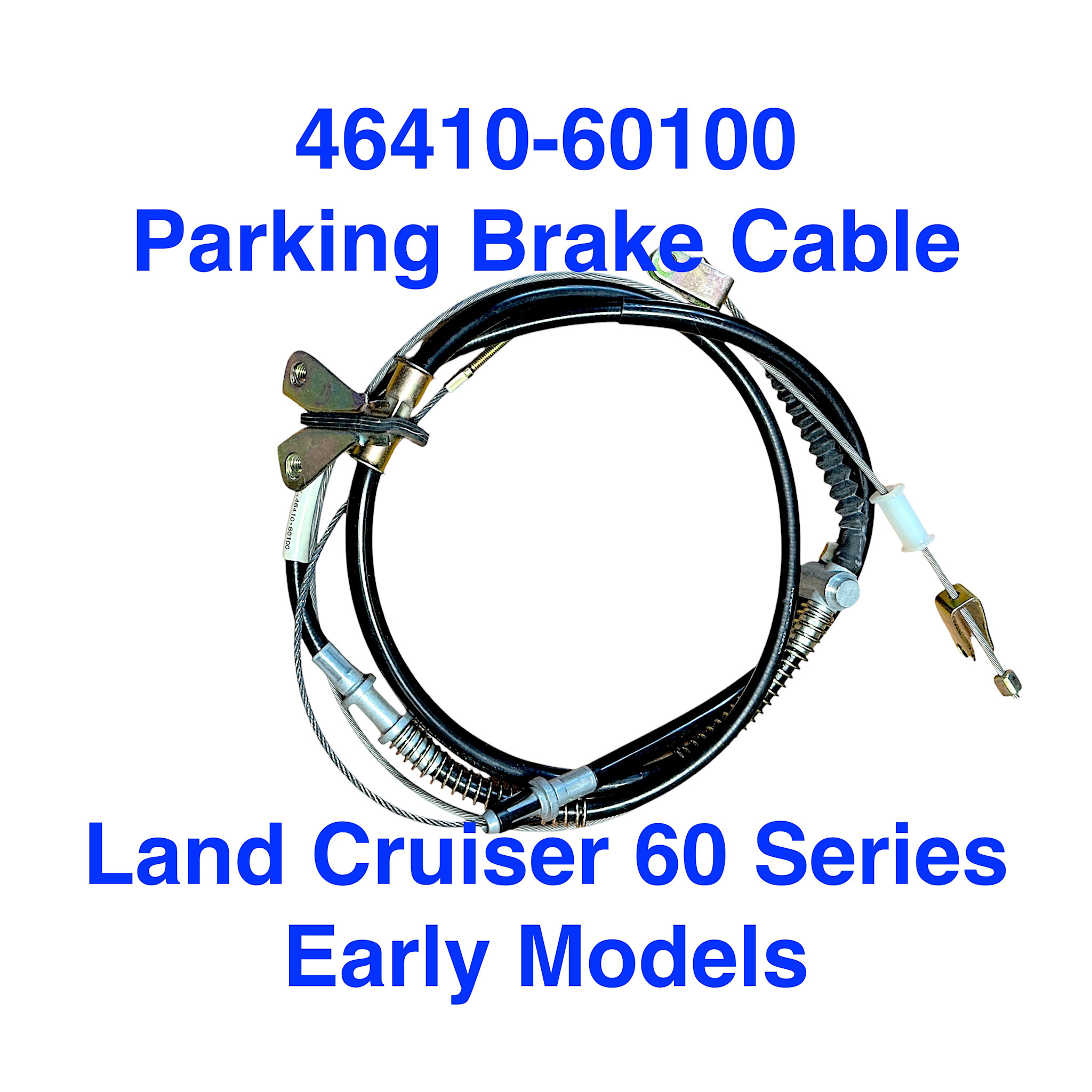

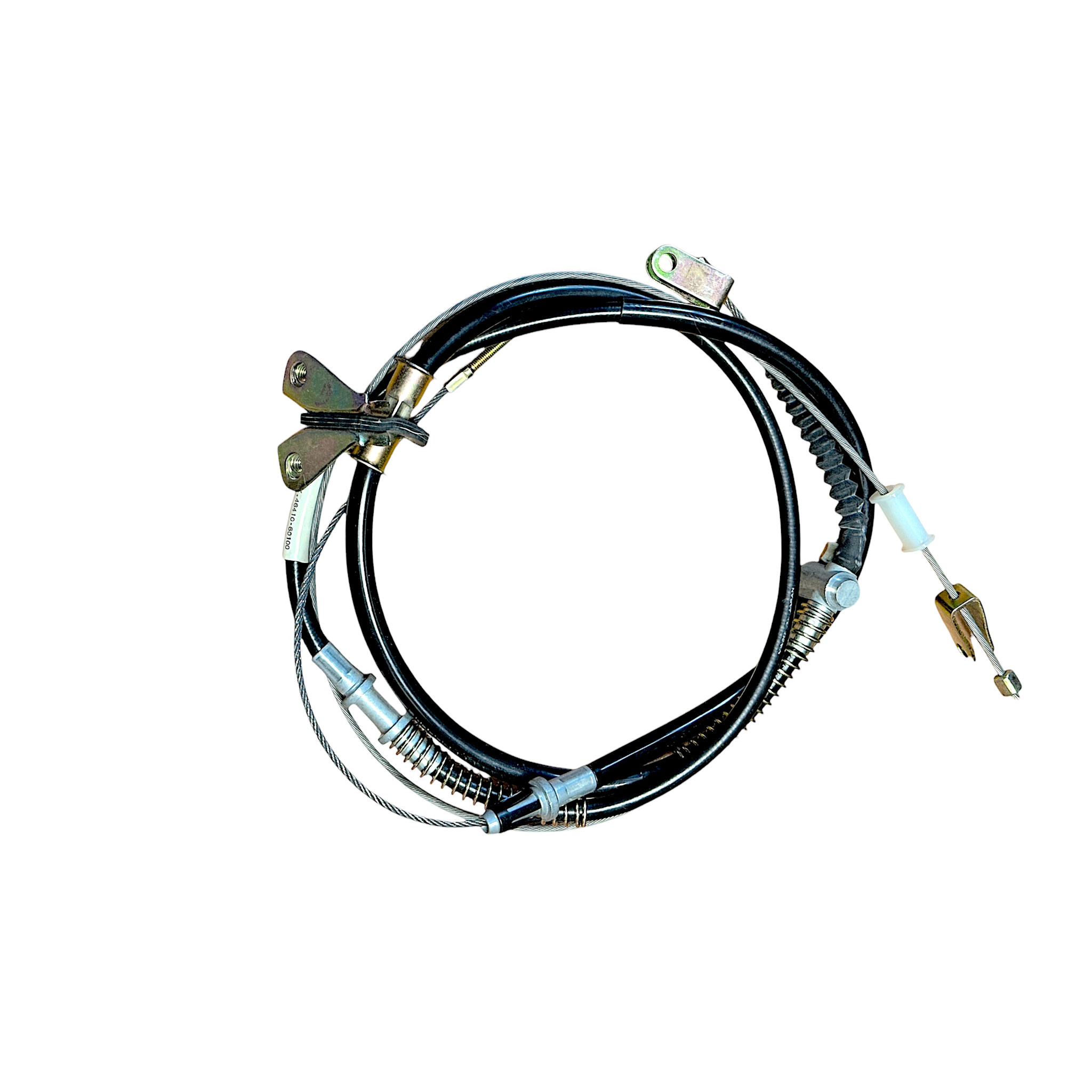

Cable Assembly, Parking Brake - Land Cruiser 60 Series - fits both LHD & RHD - EARLY MODELS 08/1980-03/1985 - 46410-60100

Cable Assembly, Parking Brake - Land Cruiser 60 Series - fits both LHD & RHD

This cable is for the EARLIER models of the 60 Series

There are two different vintages of parking brake cables for the Land Cruiser 60 Series:
46410-60100 Early = 08/1980 - 03/1984 (??)
46410-60101 Late = 04/1985 (??) - 01/1990

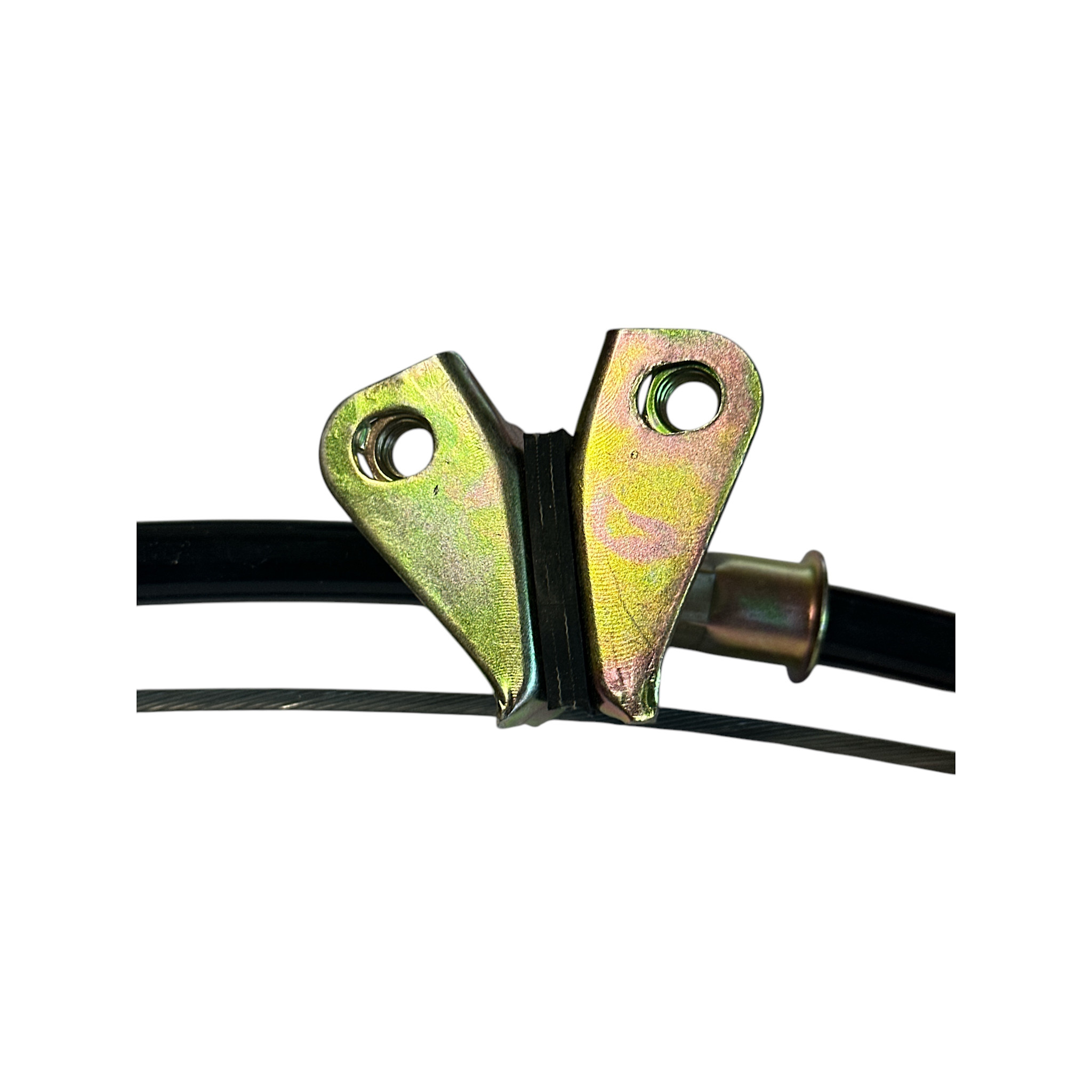

The difference between the early and late cables has to do with the shape of the bracket that mounts the cable to the rear axle. See product photos for details. The early model axle mounting bracket is "butterfly shaped" and the later one is square shaped.

There is some debate about which cable fits which model years exactly. It is best to check your 60 Series to see which cable is going to be correct for your application.

Toyota pn:
46410-60100 = Early style axle mounting bracket

Japan

4641060100
