Pin for parking brake bellcrank pivot - Drum Brakes 31mm - Land Cruiser - 90249-08068

Pin - for parking brake bell crank pivot - Land Cruiser

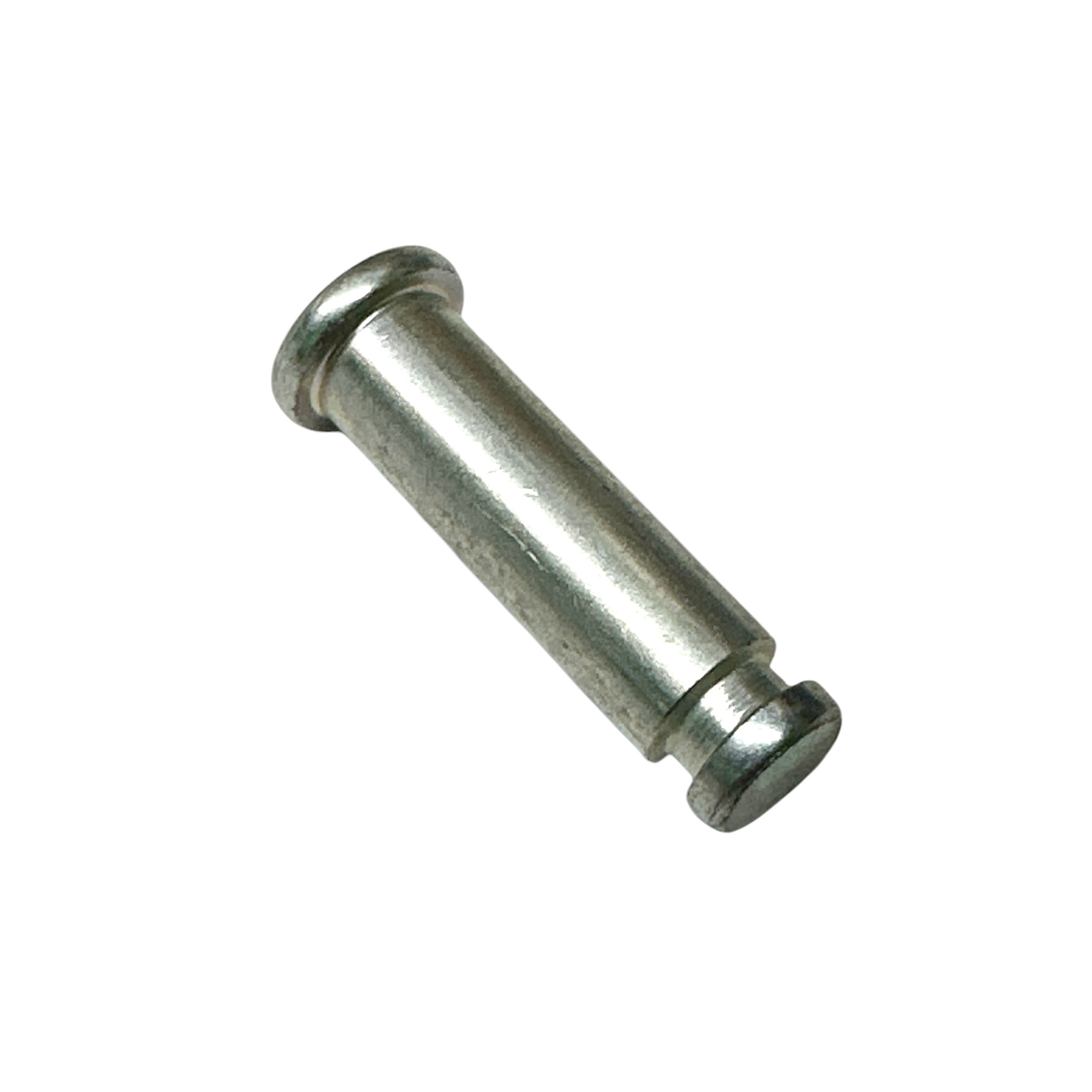

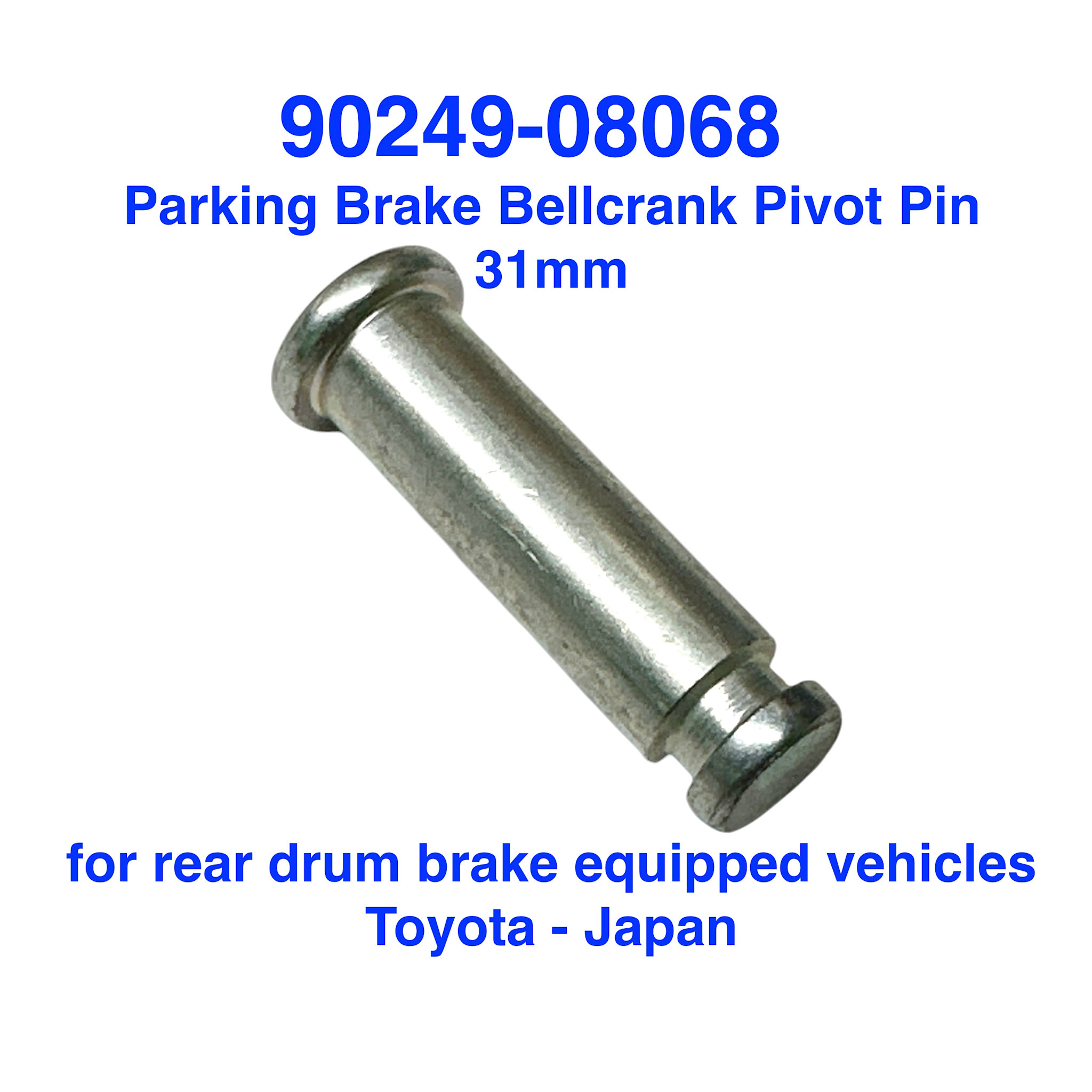

This is the pin that the parking brake bell crank pivots on drum brake equipped vehicles.

Pin length is approx. 31mm

It is secured by a small c-clip often called an "e clip": 90213-06013

It's a really good idea to lubricate this pin and also the bell cranks, where they insert into the "bracket", so that they don't seize from corrosion between the parts. Anti-seize compound of silicone brake parts lubricant works well for this job.

Toyota pn:
90249-08068
90249-08075

Toyota - Japan

2023 10 25
9024908068
9024908075
