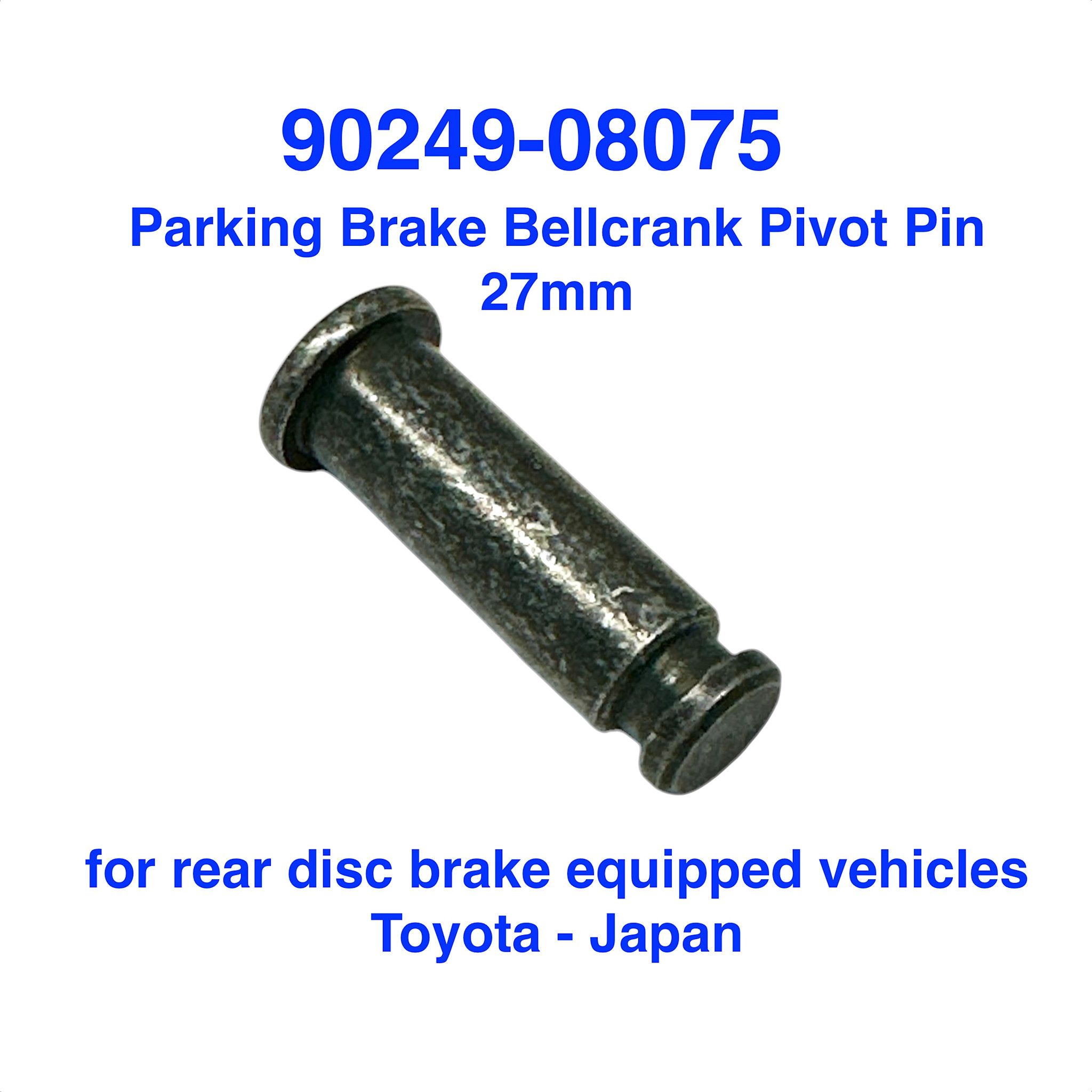

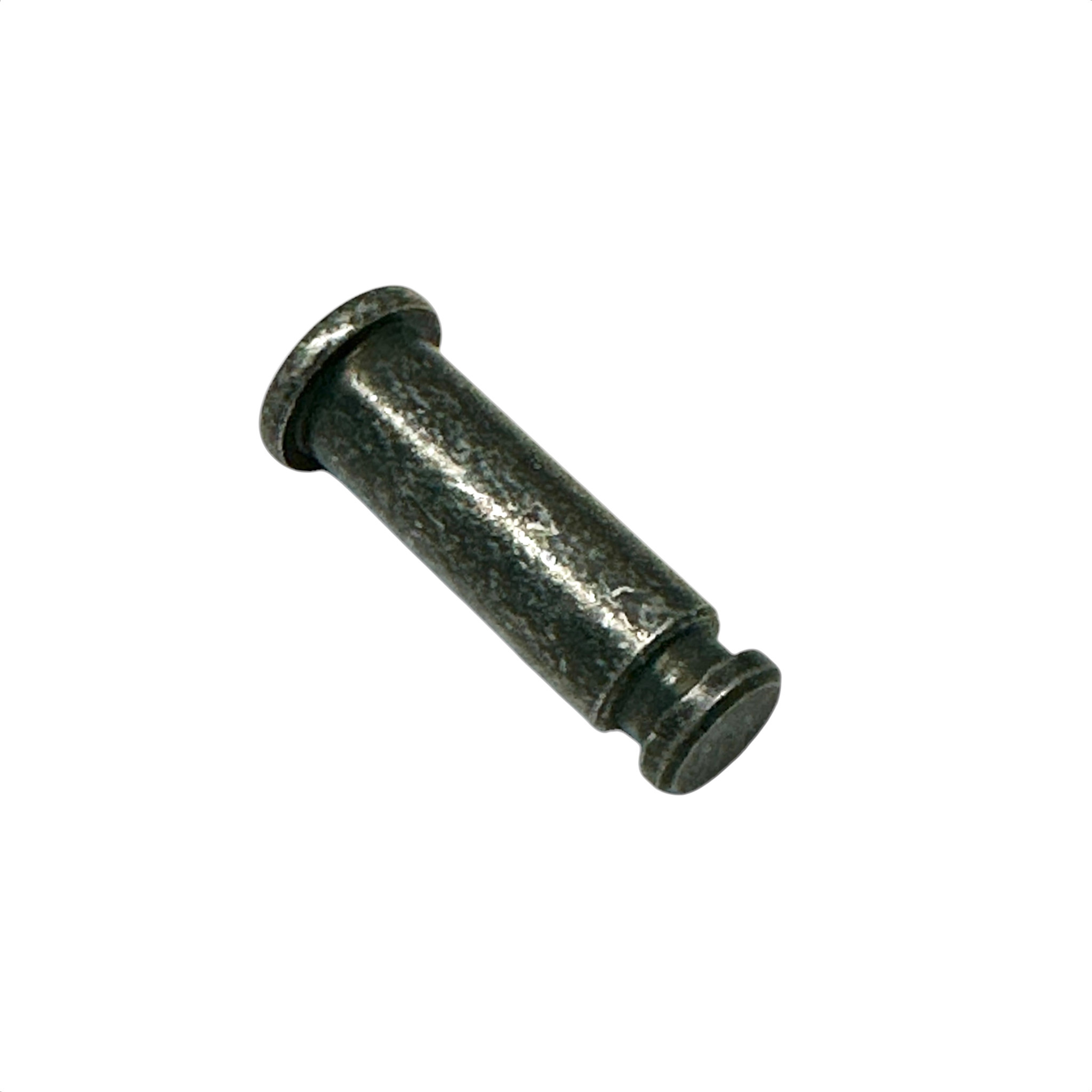

Pin for parking brake bellcrank pivot - Disc Brakes 27mm - Land Cruiser - 90249-08075

Pin - for parking brake bell crank pivot - Land Cruiser

This pin is is for Disc Brake equipped vehicles (using a disc brake in the rear)

This is the pin that the parking brake bell crank pivots on in the bracket:
RH Bracket: 47628-60010
LH Bracket: 47629-60010

It is secured by a small c-clip often called an "e clip": 90213-06013

It's a really good idea to lubricate this pin and also the bell cranks, where they insert into the "bracket", so that they don't seize from corrosion between the parts. Anti-seize compound of silicone brake parts lubricant works well for this job.

Toyota pn:
90249-08075

Toyota - Japan

2023 10 25
2025 10 11 updated
9024908075
