2LTE, 3L - Injector Washer/Seal Kit
Contains Toyota pns:
11176-64010
23654-64010
11177-64010
| Article number: | 23600-59155 |
| Availability: | Out of stock |
Please scroll to read important product information

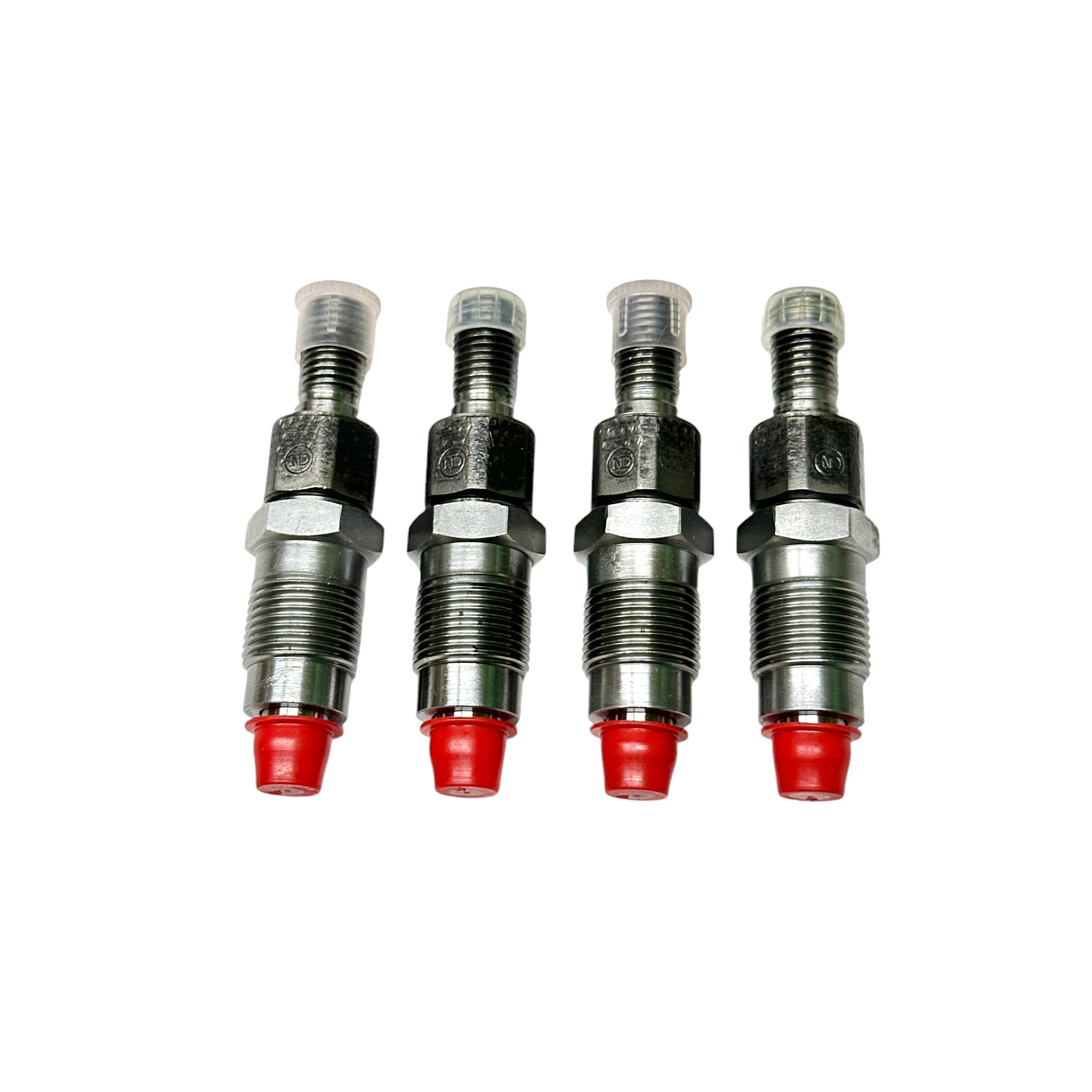

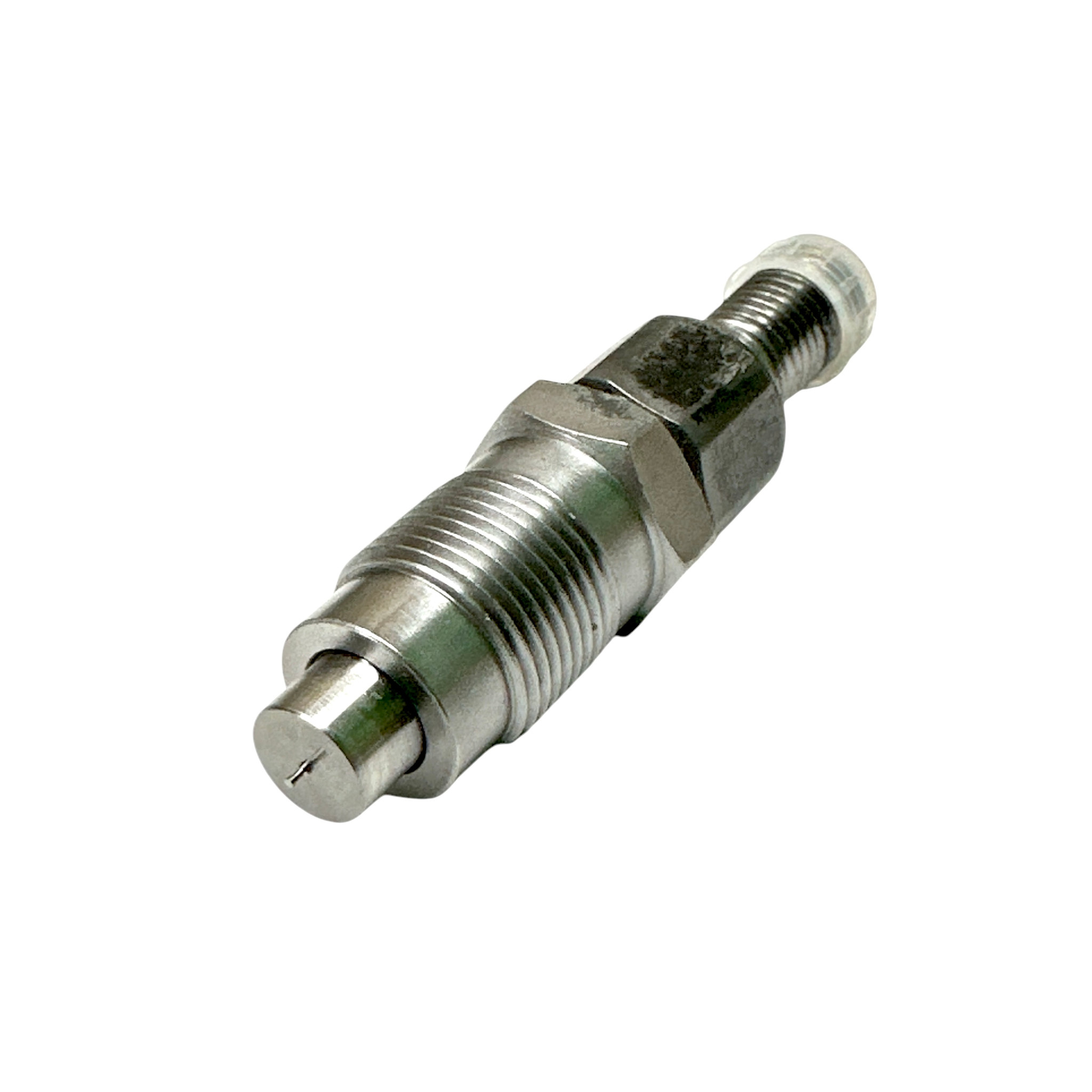

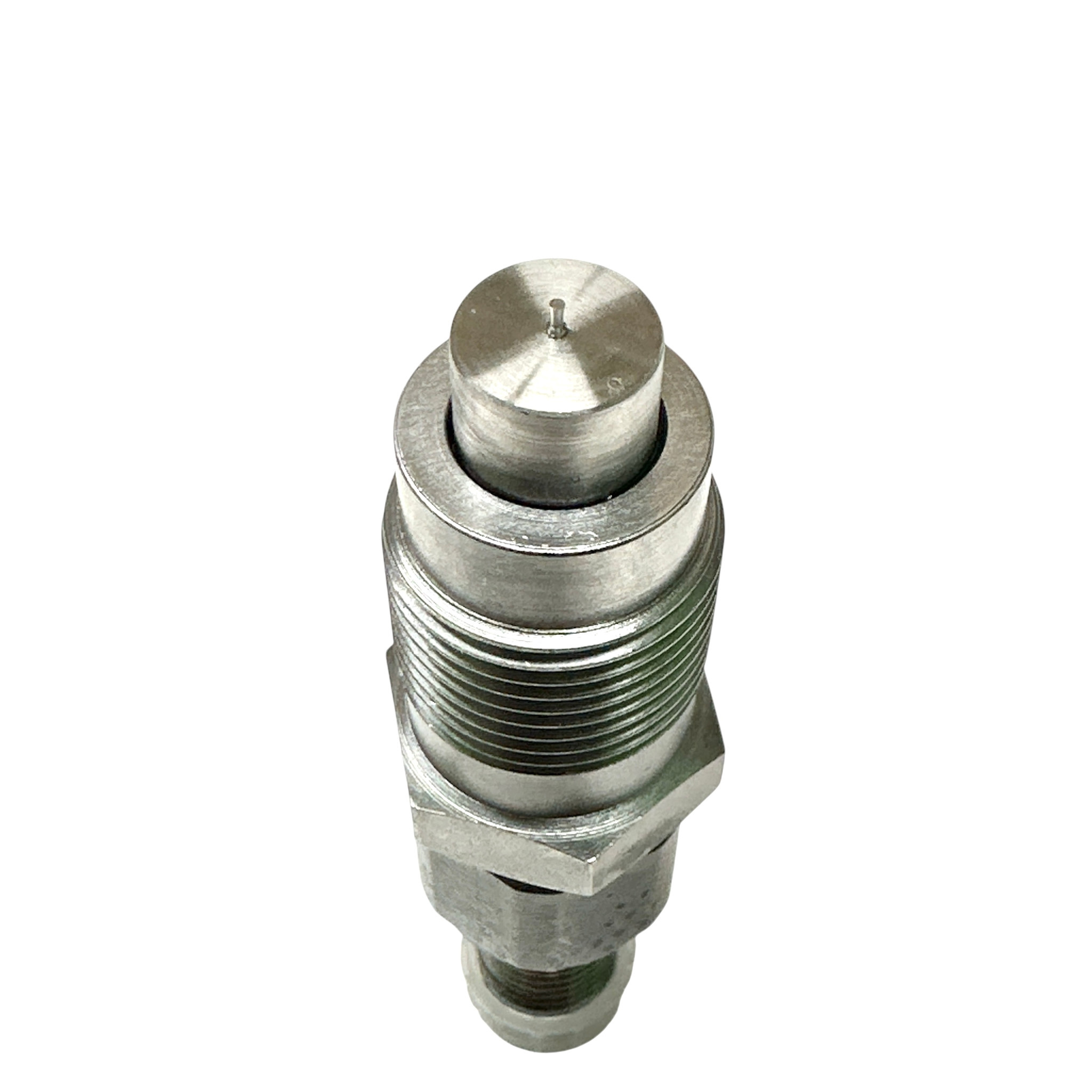

These injectors suit both 2LT-II (2nd generation 2LT) and 2LTE engines. The OEM nozzles for the 2LTE are no longer available from Toyota / Denso so 2LT-II nozzles are used.
These injectors are rebuilt using Genuine Denso nozzles and are set to the upper end of the opening pressure specification.
Important Ordering Information:
• Priced individually, but sold as a set of 4 pieces.
• Your good condition, usable injector cores are required to be returned at your expense.
• Please contact us to make arrangements for your core returns when you place an order for these parts.
• Injector washers are not included and need to be added to your parts order for successful installation.
Injector washer kit for 2LT-II, 2LTE & 3L engines: IWKTO560
Toyota FSM Image: 2LTE Injectors and Injection Pipe Torque specs
Toyota pn:

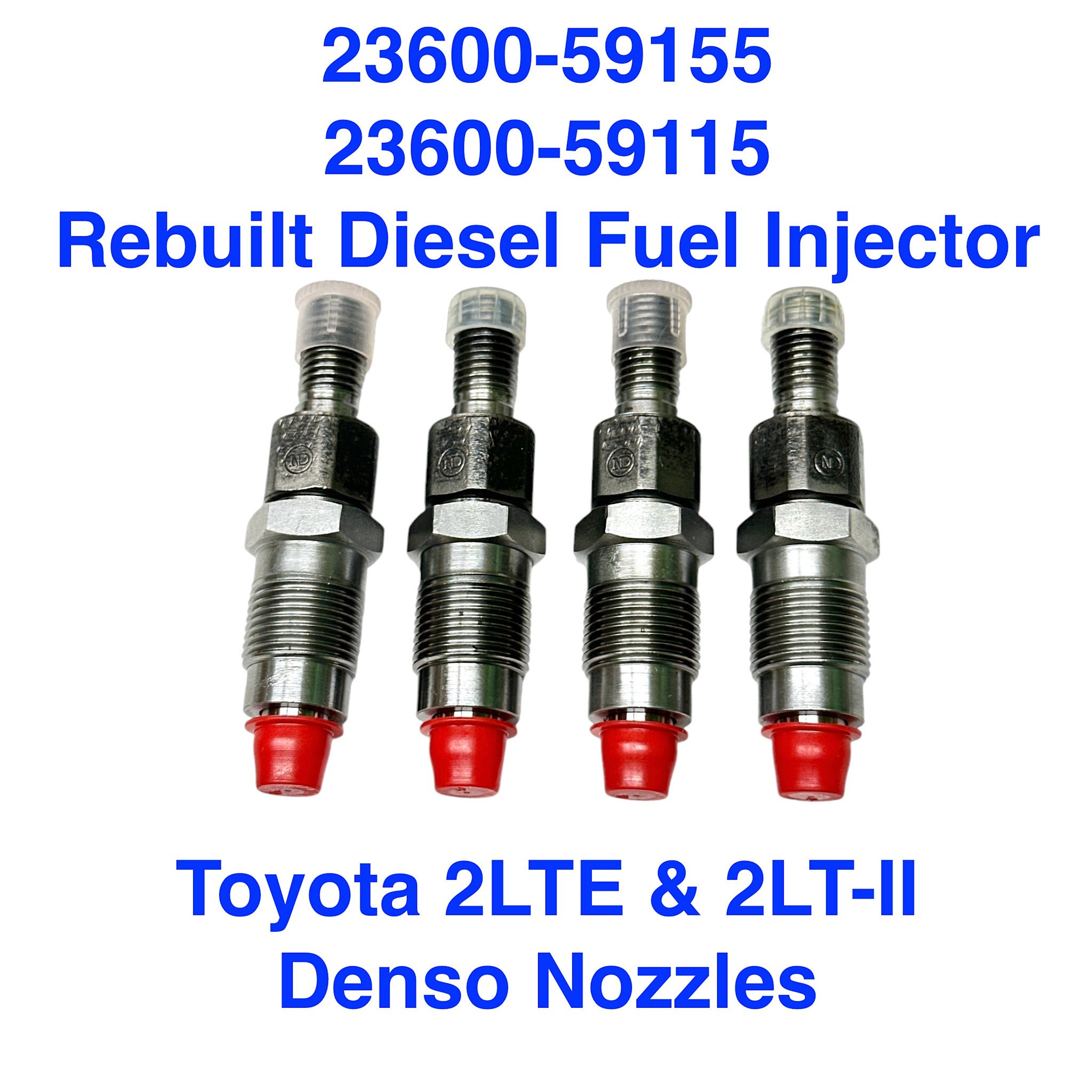

23600-59155 = 2LT-E injector assembly
23600-59115 = 2LT-II injector assembly
Genuine Denso Injector Nozzles are used during the rebuilding process.
Note: When removing the injectors, the "nozzle leakage pipe" that runs across the top of the injector can sometimes stick to the top nut when you are attempting to loosen it. This can cause the leakage pipe to get turned with the nut, causing the small tube that connects to each injector to get broken.
It is strongly recommended that A) a small amount of penetrating lubricant is used on the threads when loosening the nut and that B) the leakage pipe fitting at the top of the injector (it's the larger round part) is held tightly with some high quality Vice Grips or similar high quality locking pliers to prevent it from turning with the nut.
Torques:
• 22 ft lbs Leakage pipe nut at top of injector
• 18 flt lbs Injection pipe at both the pump and the injector
• 47 ft lbs Injector body into the cylinder head
