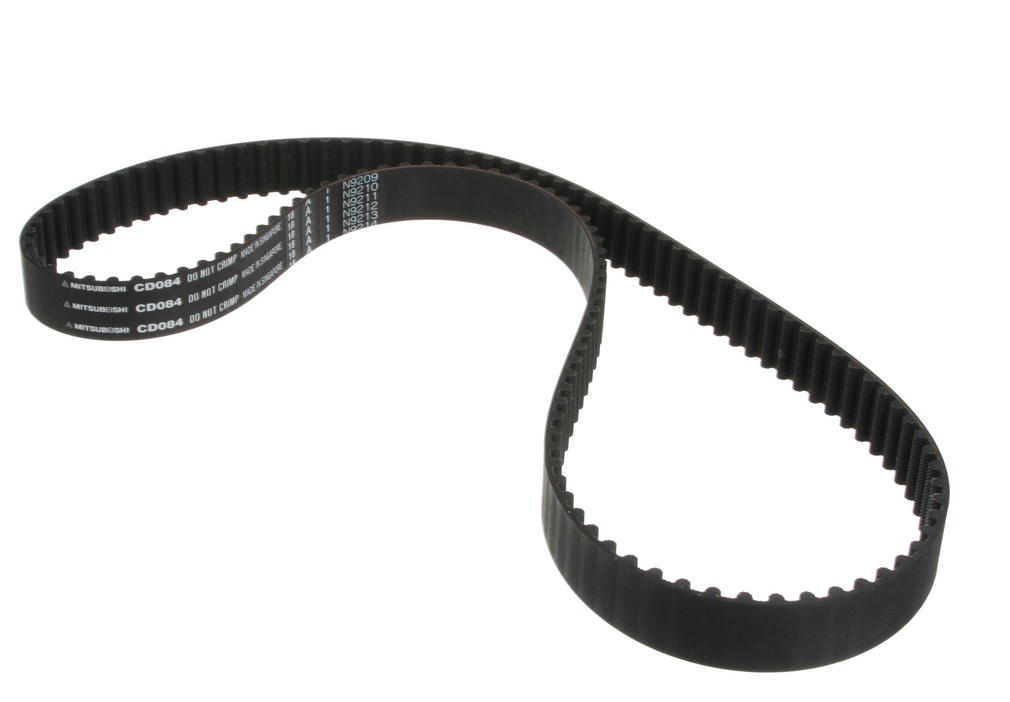

Timing Belt - Toyota L, 2L, 2LT - Early models up to 07/1988 - (130Tx25mm round tooth) - 13568-59015

Timing Belt - Toyota L, 2L, 2LT - Early models up to 07/1988 - 130Tx25mm round tooth

We have complete timing belt component kits available for these engines.

Later engines (stamped steel valve cover) and use a different 129 tooth belt using part number: 13568-54070

Note: Early L 2L engines can be identified externally by a smooth looking timing belt cover, later 2L, 2LT engines or 2L Mark II and 2LT Mark II have vertical grooves across the front face of the timing cover

Toyota pn:
13568-59027 - 130T
subs from:
13568-59025
13568-59026
13568-59075
V9152T016

A Cautionary Note:
All diesel engines are interference engines - this means that if the timing belt or the timing tensioner pulley bearing fails, then the pistons will contact the valves potentially causing severe (read: very expensive) engine damage.

Proper repair procedures require that all of the timing components and the water pump are replaced at the Toyota recommended replacement interval of 100,000kms or 5 years, whichever comes first, or what is listed in your Factory Service Manual if it differs from this recommendation.

It is further recommended that other parts are inspected and replaced as necessary, including belts, radiator and heater hoses, thermostat and gasket, along with engine coolant at the proper concentration.
