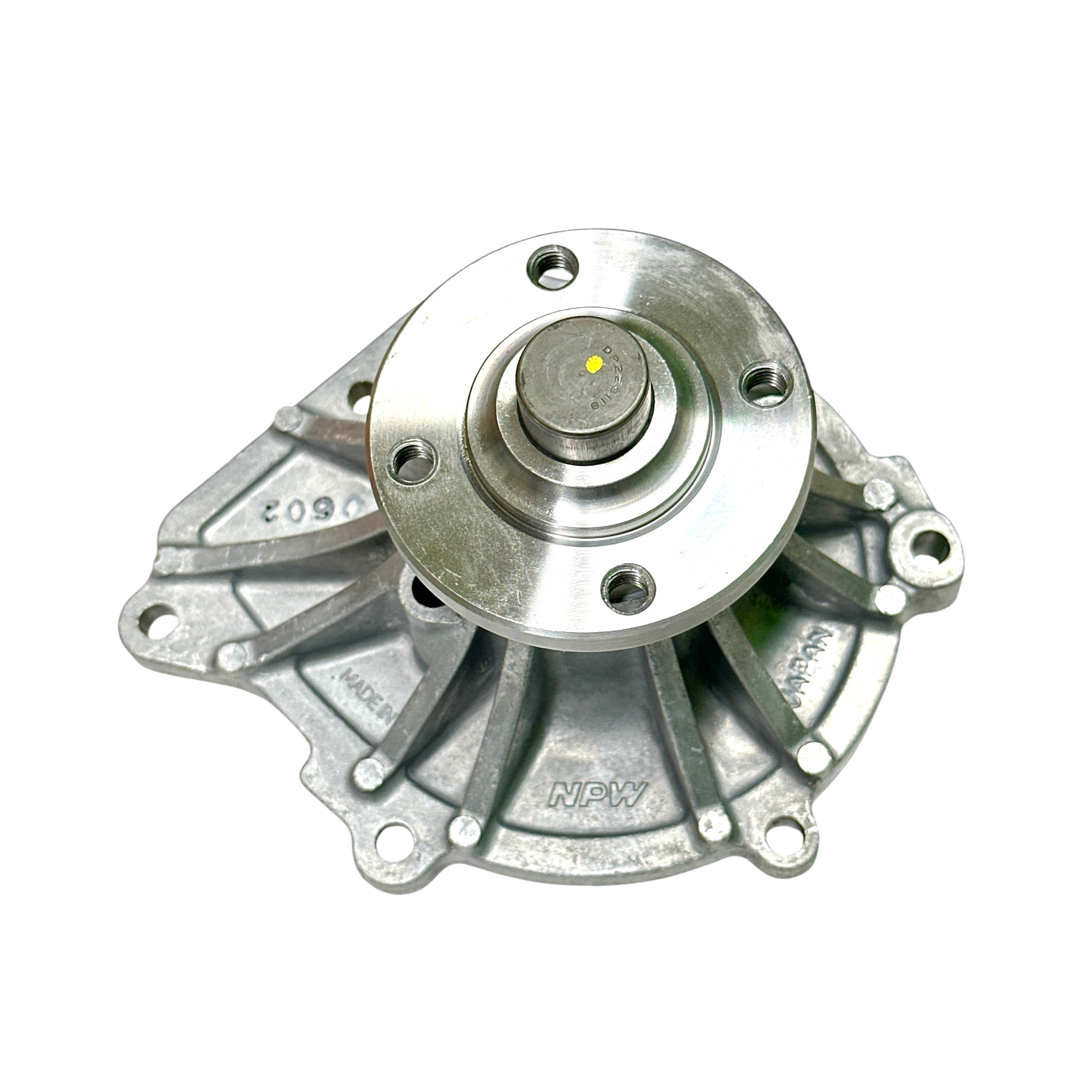

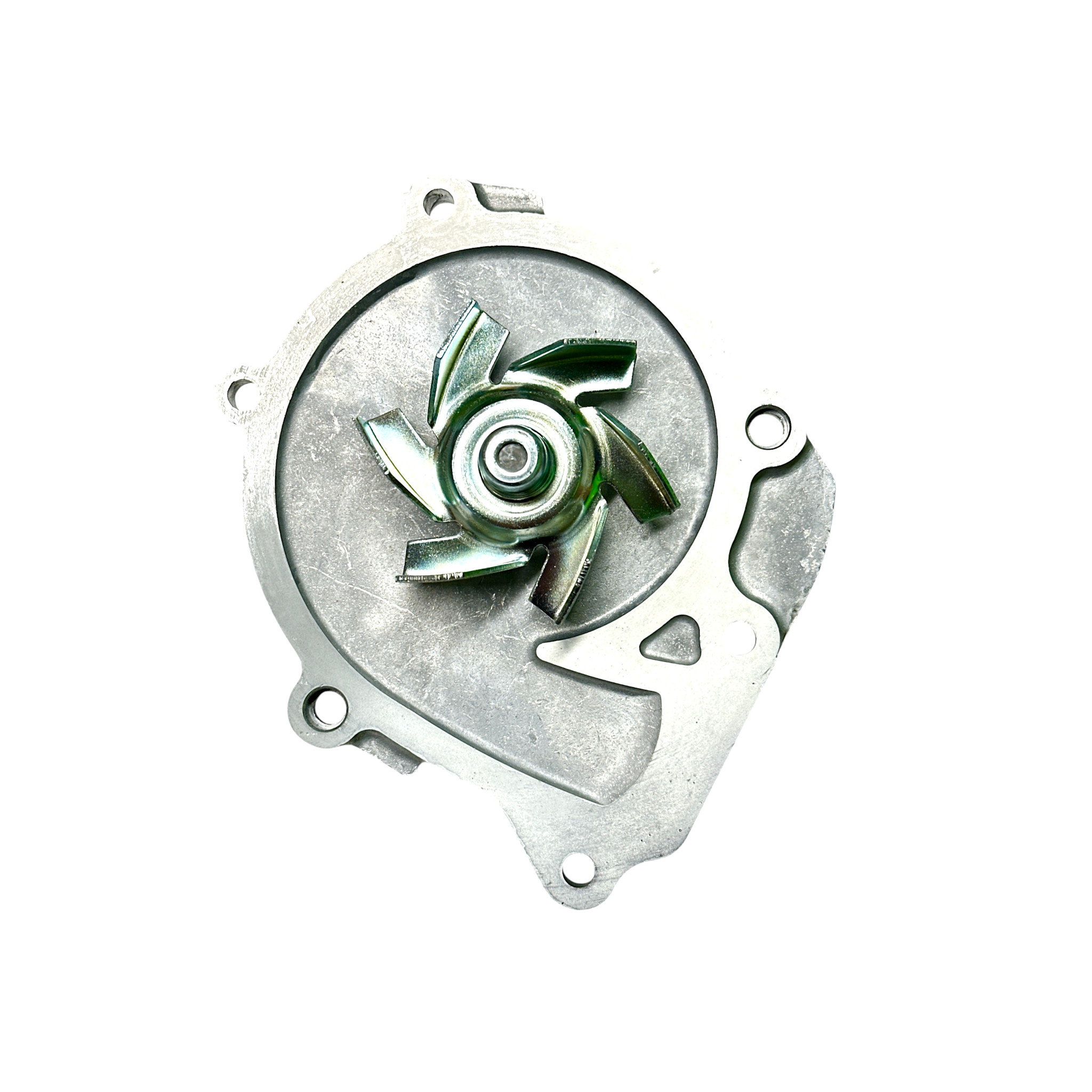

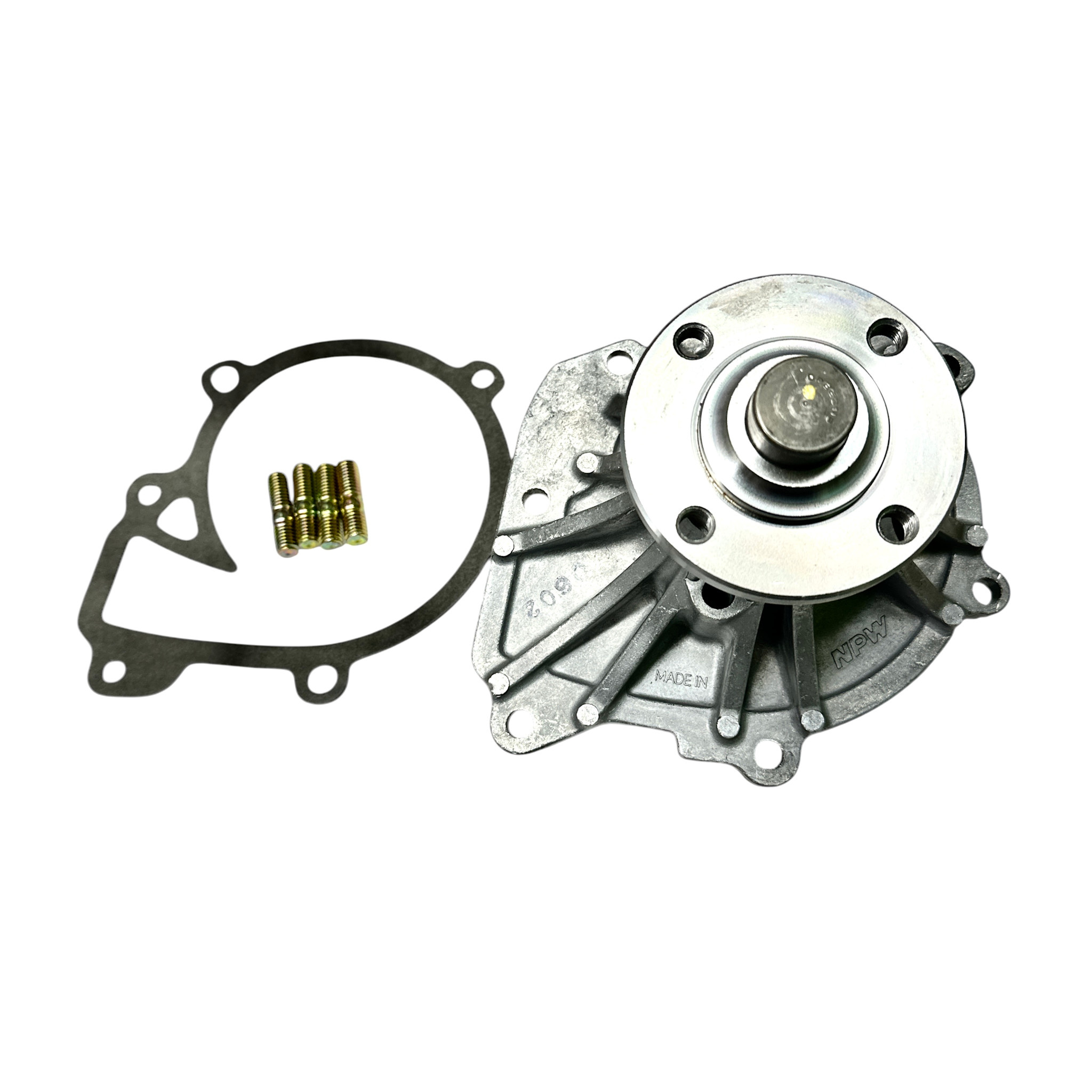

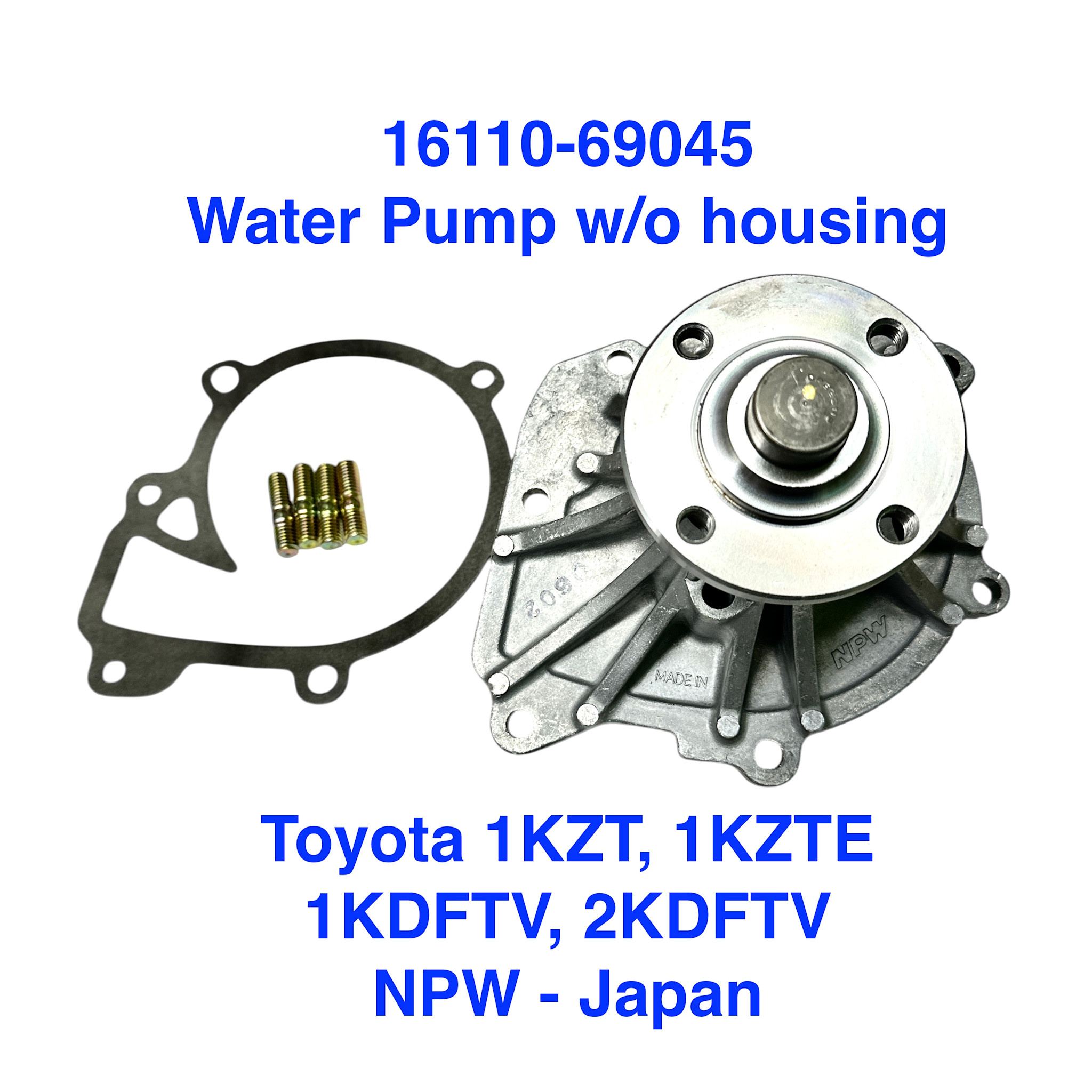

Water Pump - Toyota 1KZT, 1KZTE, 1KDx - 16110-69045

Water Pump - 1KZT, 1KZT-E, 1KD-FTV, 2KD-FTV - Pump Only

Water pump assembly without the 'cover housing' for the 1KZT, 1KZTE, 1KDFTV and 2KDFTV engines.

There are other versions of this water pump available with the rear housing (Toyota calls this a 'cover') if you require this part.

The 1KD-FTV and 2KDFTV typically came with the all-in-one pump that has the 'cover housing' cast as part of the pump. See the product listing and explanation at:16100-09260  or  16100-69355

Additional details about the various pump options are listed below.

Toyota pn:
16110-69045 - supplied part = without the optional 'cover housing' = "pump only"

16100-69356 - "Pump Assembly" has the rear cover housing and is listed on another page, along with several other interchange part numbers

GMB or NPW - Japan

GMB Corporation is a Japanese company that produces high quality Tier 1 OE automotive parts in factories around the world, including Japan, Korea, North America.

Note: There are 3 configurations of water pumps available for there series of engines.

The early engines had a separate water pump and "cover housing" (goes behind the actual pump and attaches between the pump and the block); for these models you can get the "pump only" unit to replace your water pump. Or, you can opt to get a pump that has a separate "cover housing".

The later engines were built with water pumps that had an integral "cover housing" that is cast as one-piece and does not have separate parts. These pumps are compatible with all vintages if you replace the water pump + cover housing with the one-piece pump.

For later engines, there are is really only one choice - you need the pump with the "cover housing" or the one-piece pump that has no separation between the parts - and you cannot make use of the "pump only" part as the engine was supplied with the one-piece water pump casting.

2022 03 29
2024 12 16 minor updates
2025 02 05 minor updates, new images
1611069045
1610069356
NPW T125
