Water Pump + housing - Toyota 1KZT, 1KZTE, 1KDFTV, 2KDFTV - 16100-69355

Water Pump - 1KZT, 1KZT-E, 1KD-FTV, 2KD-FTV - Pump with Cover Housing.

• Water pump assembly with the separate 'cover housing' for the 1KZT, 1KZTE, 1KDFTV and 2KDFTV engines.

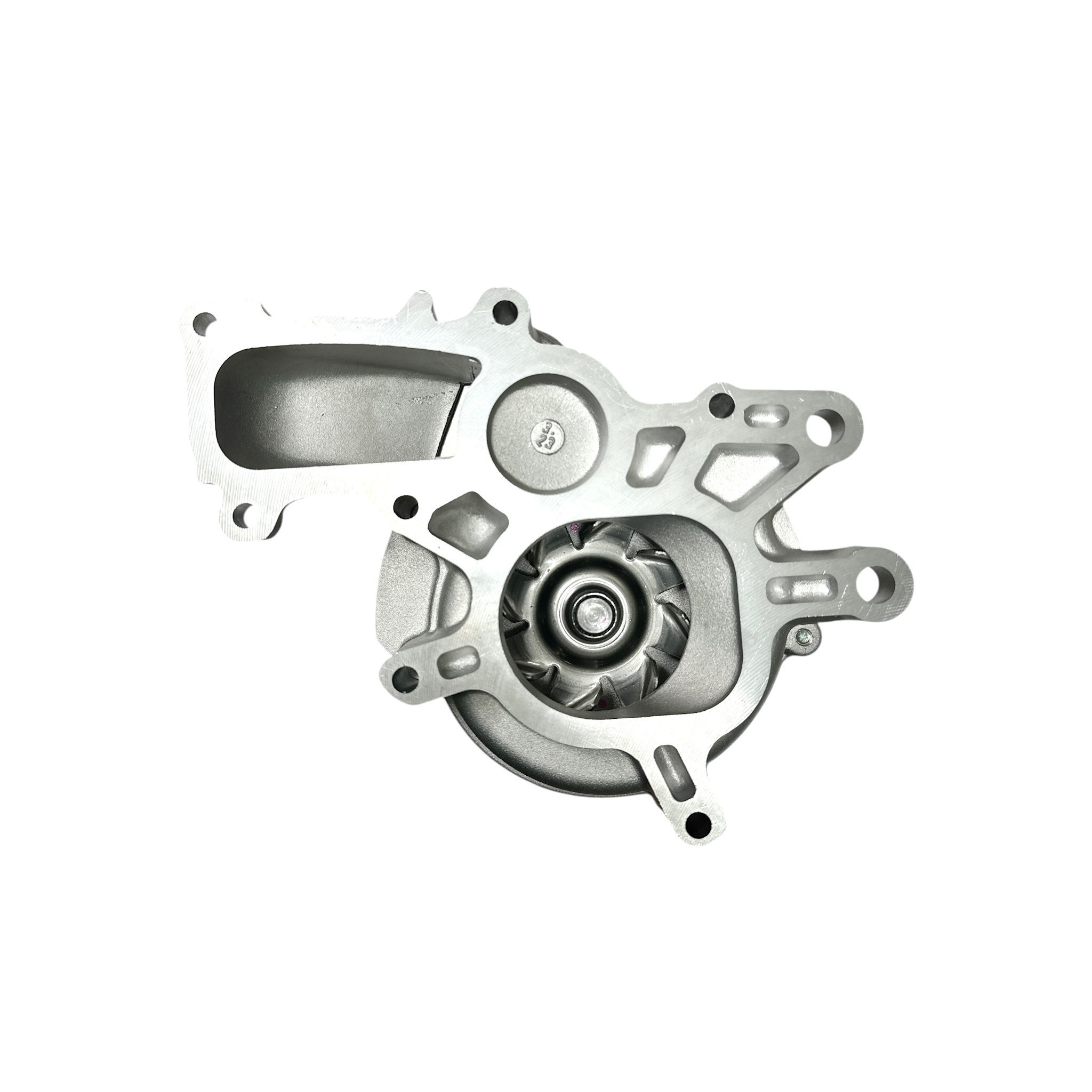

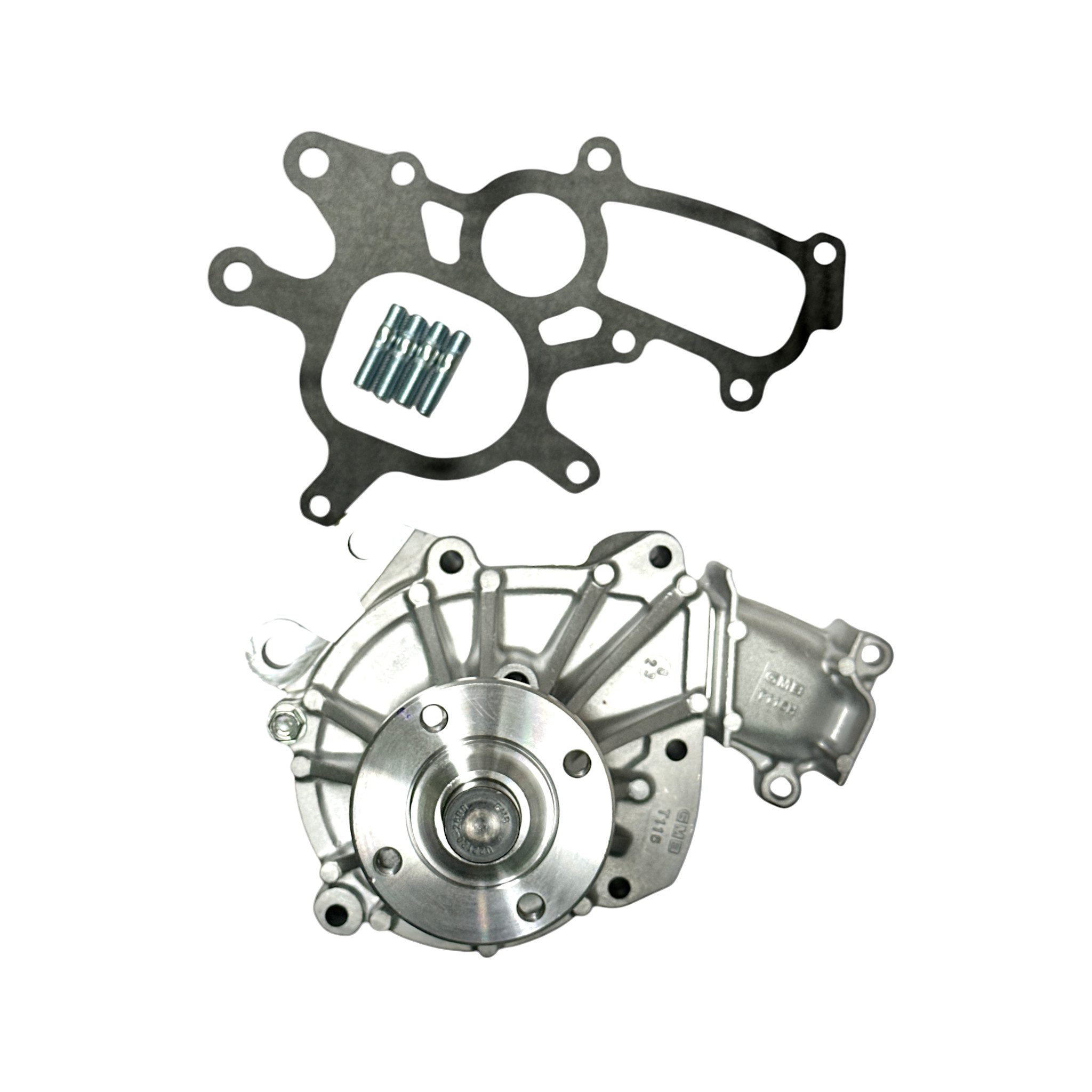

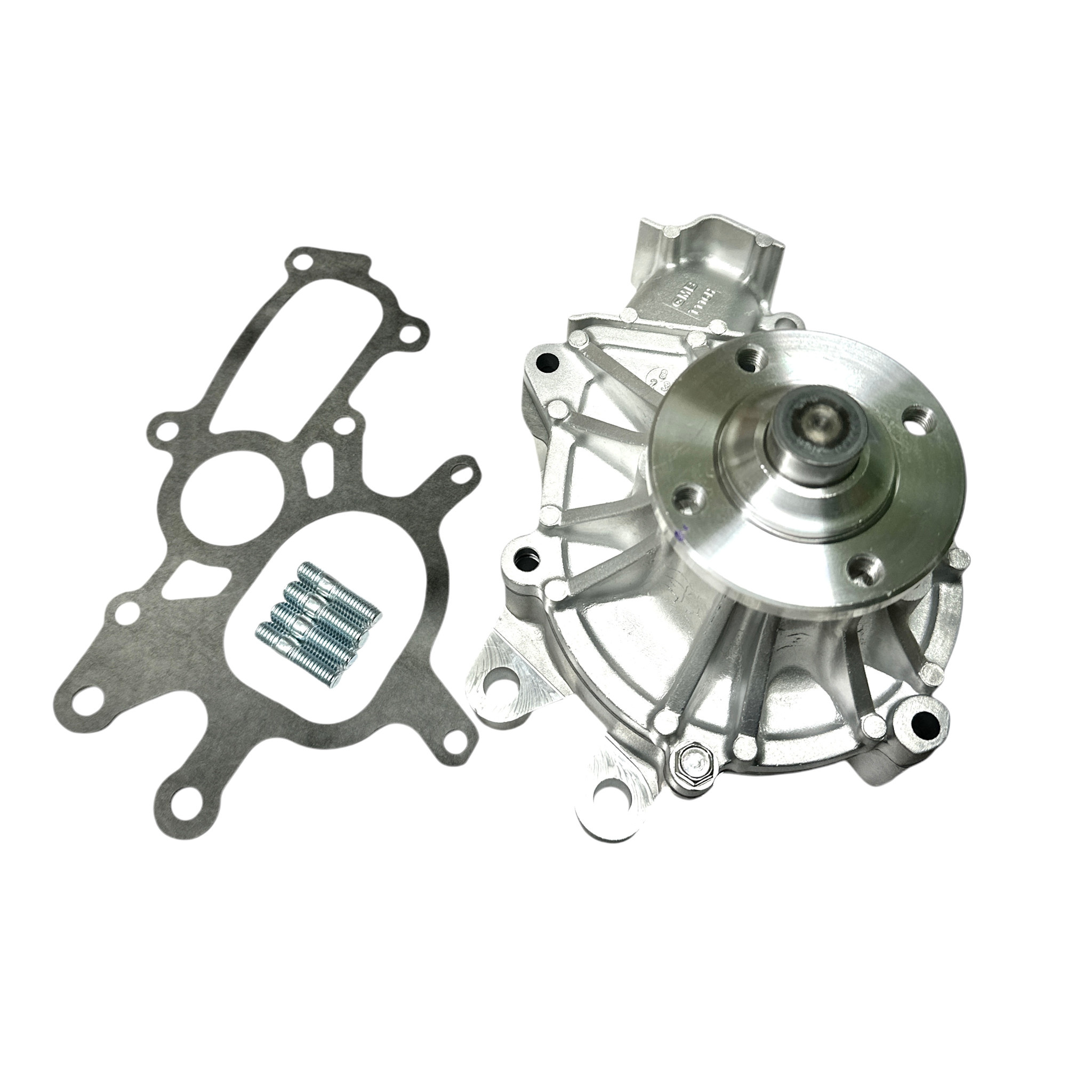

• See the product photos for details of what you are ordering:

Note: There are 3 configurations of water pumps available for there series of engines.

The early engines had a separate water pump and "cover housing" (goes behind the actual pump and attaches between the pump and the block); for these models you can get the "pump only" unit to replace your water pump. Or, you can opt to get a pump that has a separate "cover housing" (option 2 - which is listed here).

The later engines were built with water pumps that had an integral "cover housing" that is cast as one-piece and does not have separate parts. These pumps are compatible with all vintages if you replace the water pump + cover housing with the one-piece pump.

For later engines, there are is really only one choice - you need the pump with the "cover housing" or the one-piece pump that has no separation between the parts - and you cannot make use of the "pump only" part as the engine was supplied with the one-piece water pump casting.

Toyota pn:
16100-69355 = comes with the rear cover as a separate part = supplied part
16100-69356 = comes with the rear cover as a separate part = supplied part
16110-69045 - without the optional cover

Other part numbers for this item that may be compatible:
16100-09260 = pump with one-piece casting
16100-09261 = pump with one-piece casting
16100-69356 = pump with two-piece casting
16100-69357 = pump with two-piece casting
16100-39485 = pump with one-piece casting
16100-39486 = pump with one-piece casting

GMB - Japan or Thailand

GMB Corporation is a Japanese company that produces high quality Tier 1 OE automotive parts in factories around the world, including Japan, Korea, North America.

8413.30
2022 03 29
2025 02 20 added new photos
