| Article number: | 47550-26110 |
| Availability: | Out of stock |

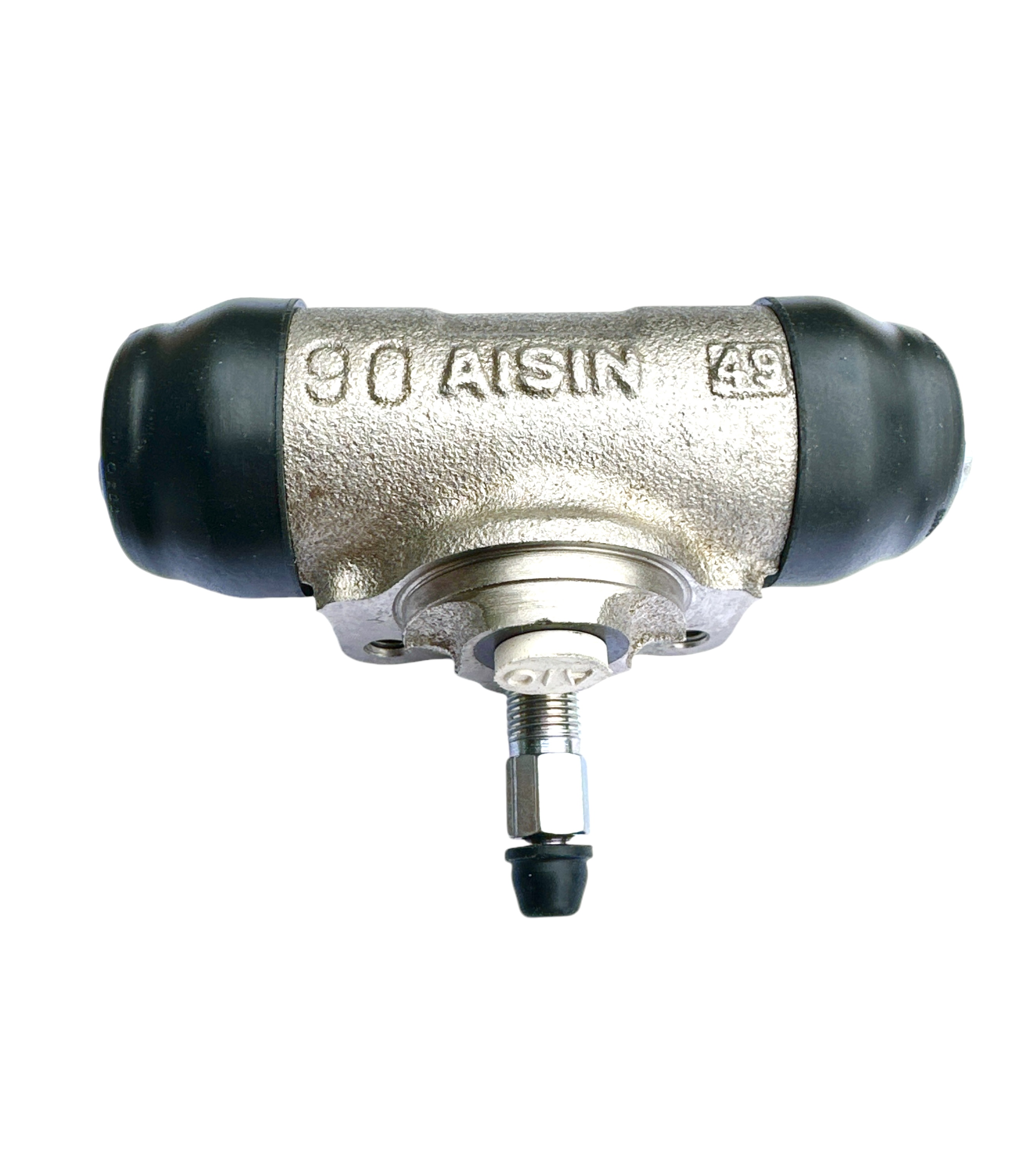

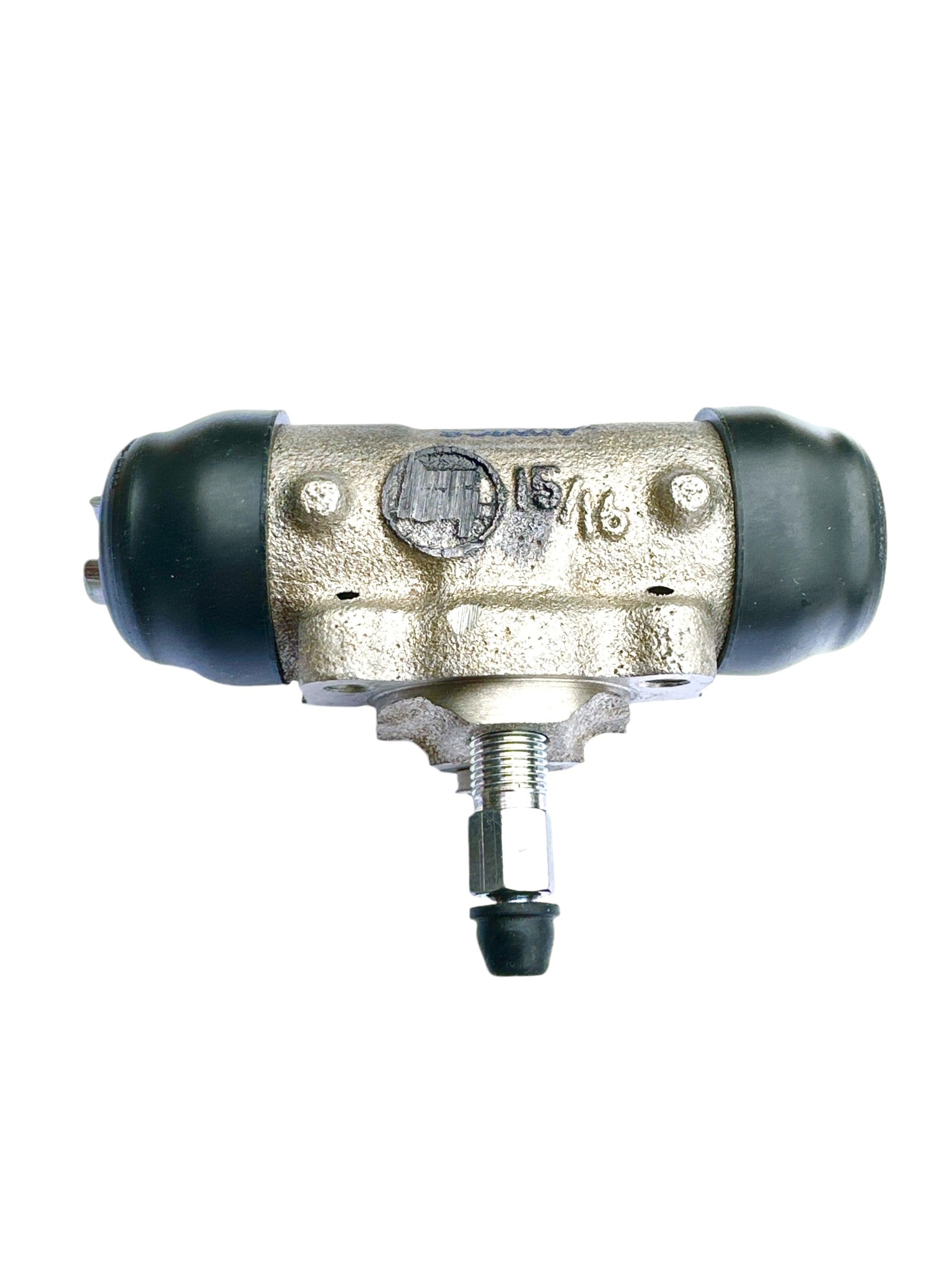

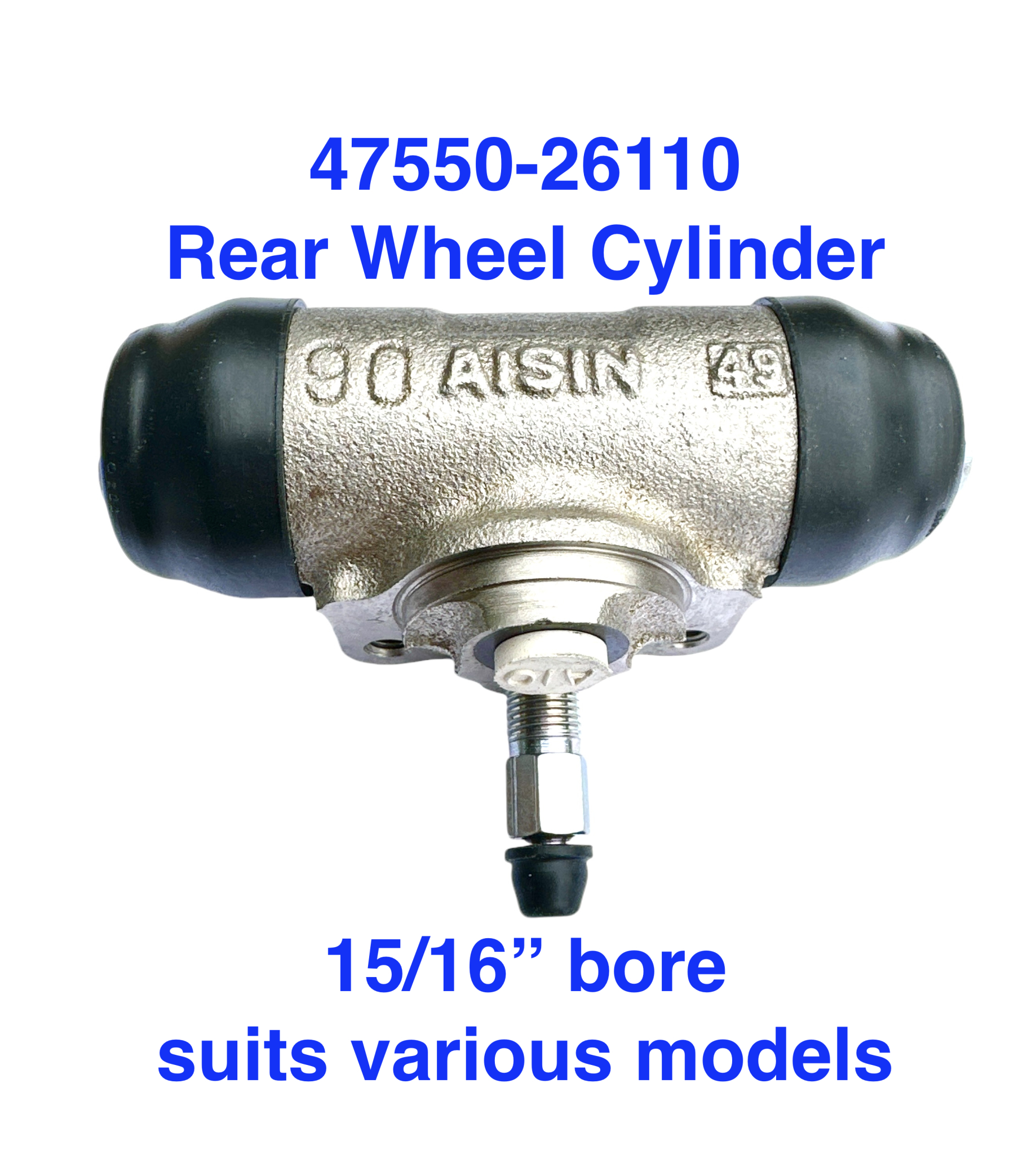

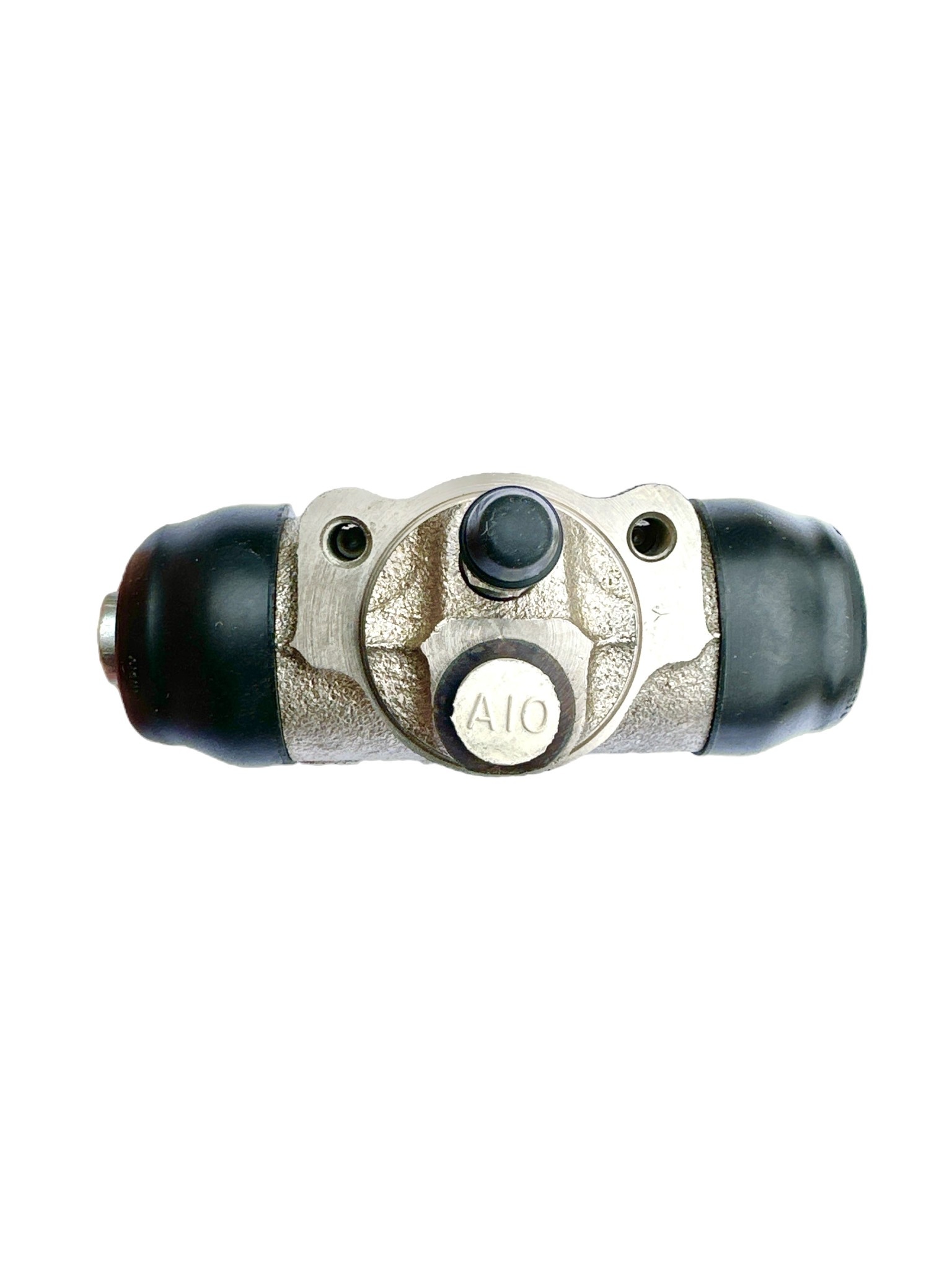

Wheel Cylinder 47550-26110 is a 15/16" bore (vs 1" or 7/8" bore) and is compatible with:
• Hilux LN130R, RN130R, VZN130R
• HiAce LH109V, LH119V, LH129V, LH166L
• Dyna KDY220L, KDY220R, KDY221L, KDY221R, KDY230L, KDY231L, LY220R, LY225L, LY225R
• T100 RCK10L, VCK11L - wheel cylinders vary in bore diameter depending on 2WD vs 4WD, and 1/2 ton vs 1 ton, which also relates to brake shoe size (1-31/32 wide shoes, vs 2-3/8" wide shoes).
• Please provide brake shoe measurements and VIN/Frame Number so we can the correct wheel cylinders to you.
Toyota pn:
47550-26110 = 15/16" bore
Toyota OEM / Aisin - Japan
Notes: there are 3 different brake wheel cylinder bore diameters depending on the specifics of the application. Heavier duty models generally use 1" bore cylinders (47550-60120), and lighter duty models use either 15/16" or 7/8" diameter bores.
Pro Tip: When you are installing any brake tube fitting, bleeder screw, or mounting bolt add a small amount of anti-seize compound to the threads for trouble-free disassembly later on.
Also, carefully dismantling and applying a thin layer of Sil-Glyde or other brand of silicone brake parts lubricant to the piston, seals, and bore can extend service life.
4755026110 = 15/16" bore
4755035170 = 7/8" bore please send a message if you need this part
4755035190 = 7/8" bore please send a message if you need this part
WCT007 = -35170, -35190
WCT027 = -26110 15/16" bore
FW1372
